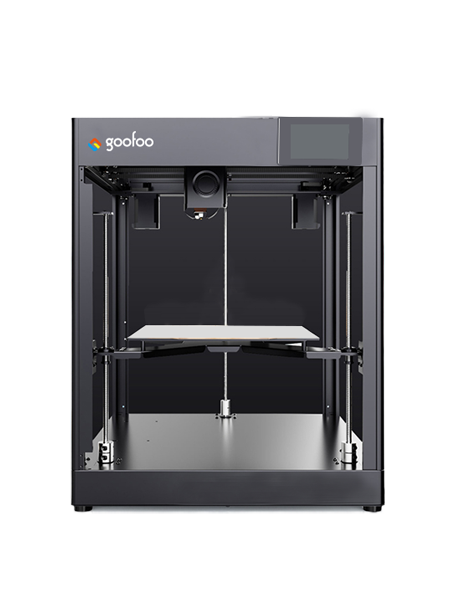

5-axis 3D printer
Watch Video
CARDAN

Describe

Machine

Print model

图片名称

CARDAN

3D Printing

CARDAN

Milling Cutter

CARDAN

Laser Head

CARDAN

Grinding Head

CARDAN

Industrial Linear Guide Rail

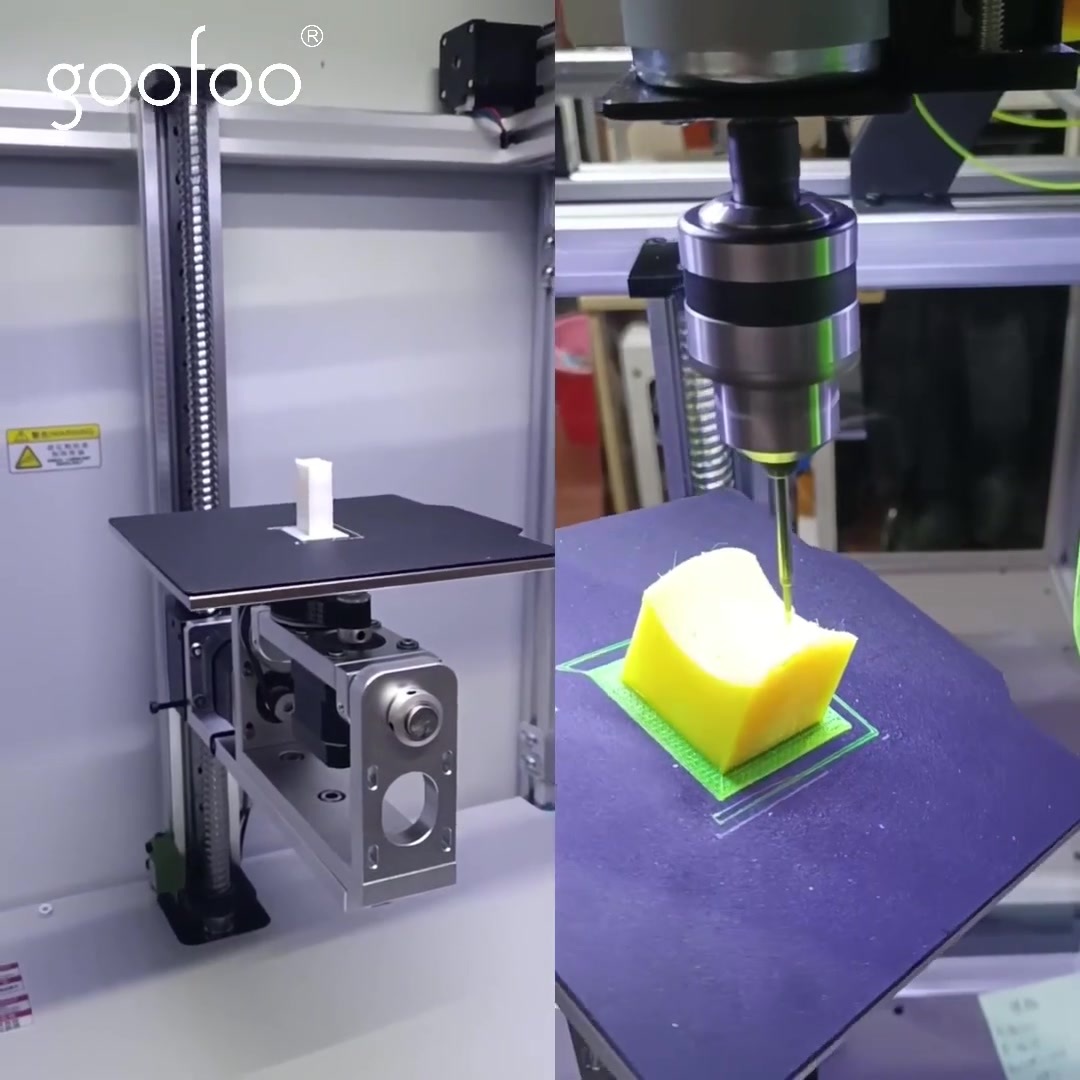

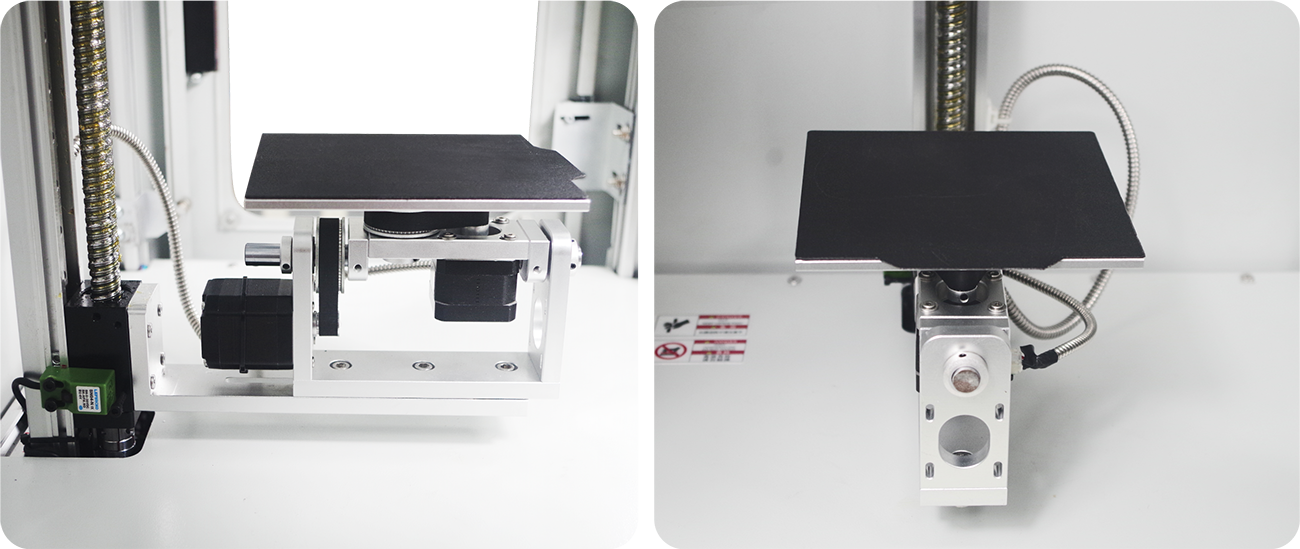

5-axis linkage realizes unsupported printing of complex work pieces, avoiding internal support and saving time and cost.

Goofoo

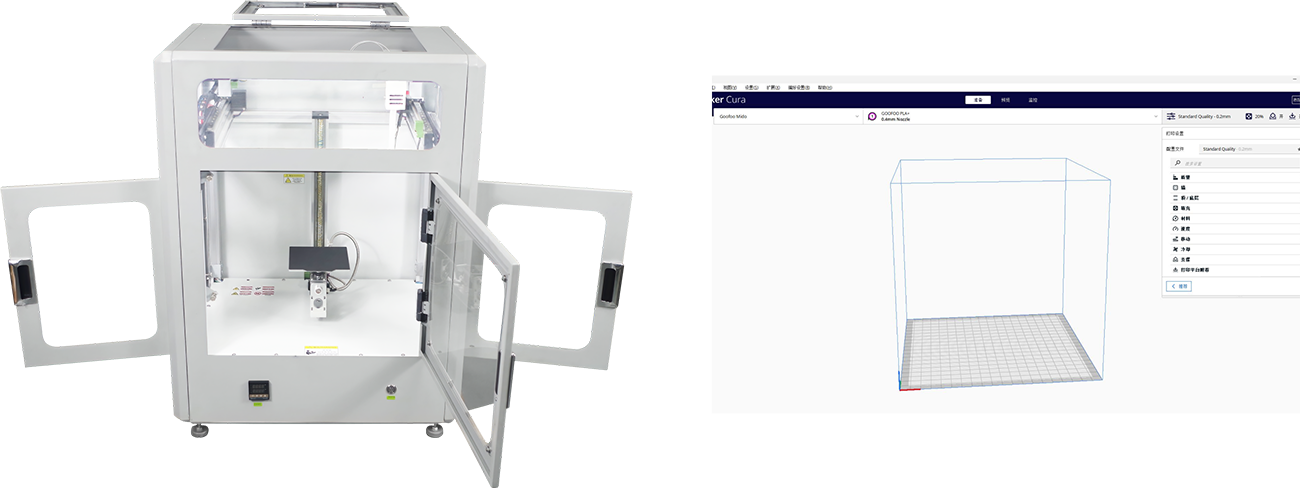

Self-developed slicing software realizes simultaneous printing of different axial work pieces in one slicing, no need to splice the work pieces after printing.

Goofoo

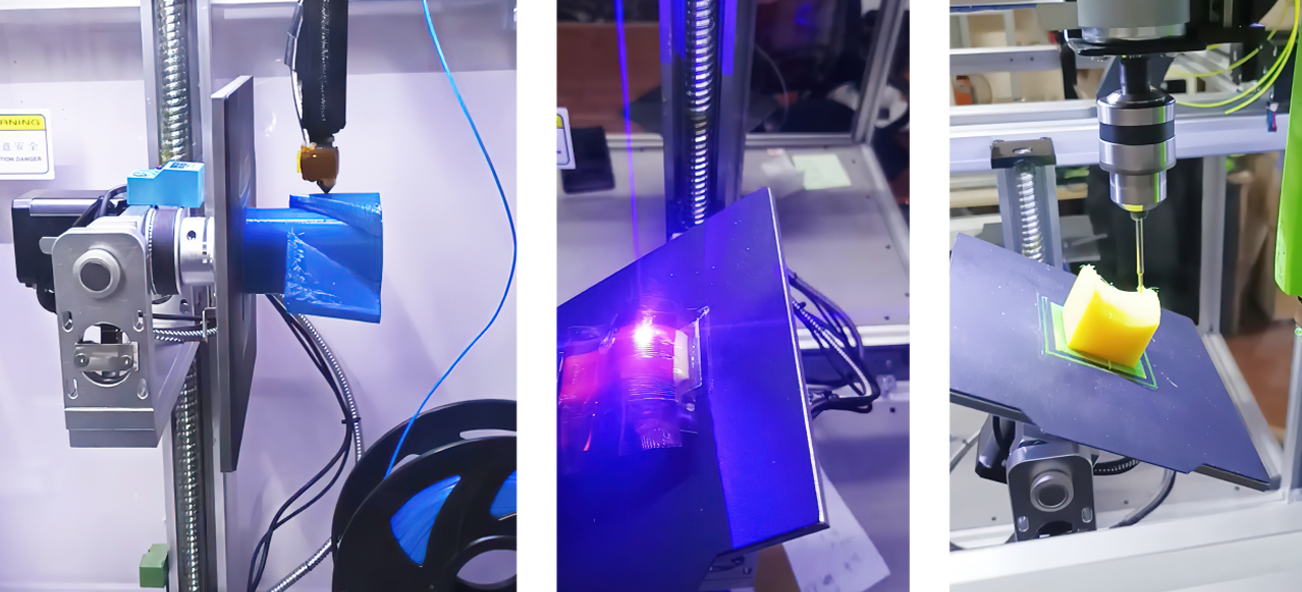

Customized composite print head, 3d printing + milling cutter/ grinding head/laser engraving and other additive/subtract compound processing.

Goofoo

Linear motion guide actuator

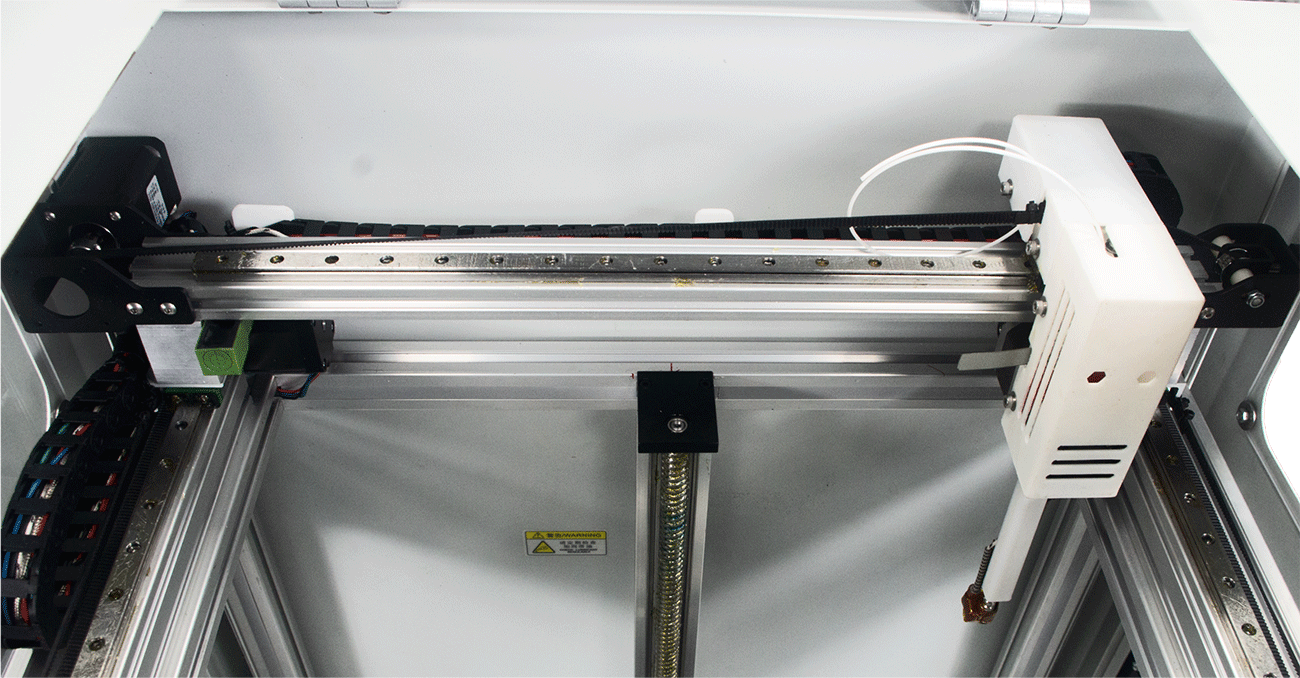

The X axis, y axis and z axis are all equipped with industrial linear guide ensure the stalbe and precision movement control even after long time printing.
Goofoo

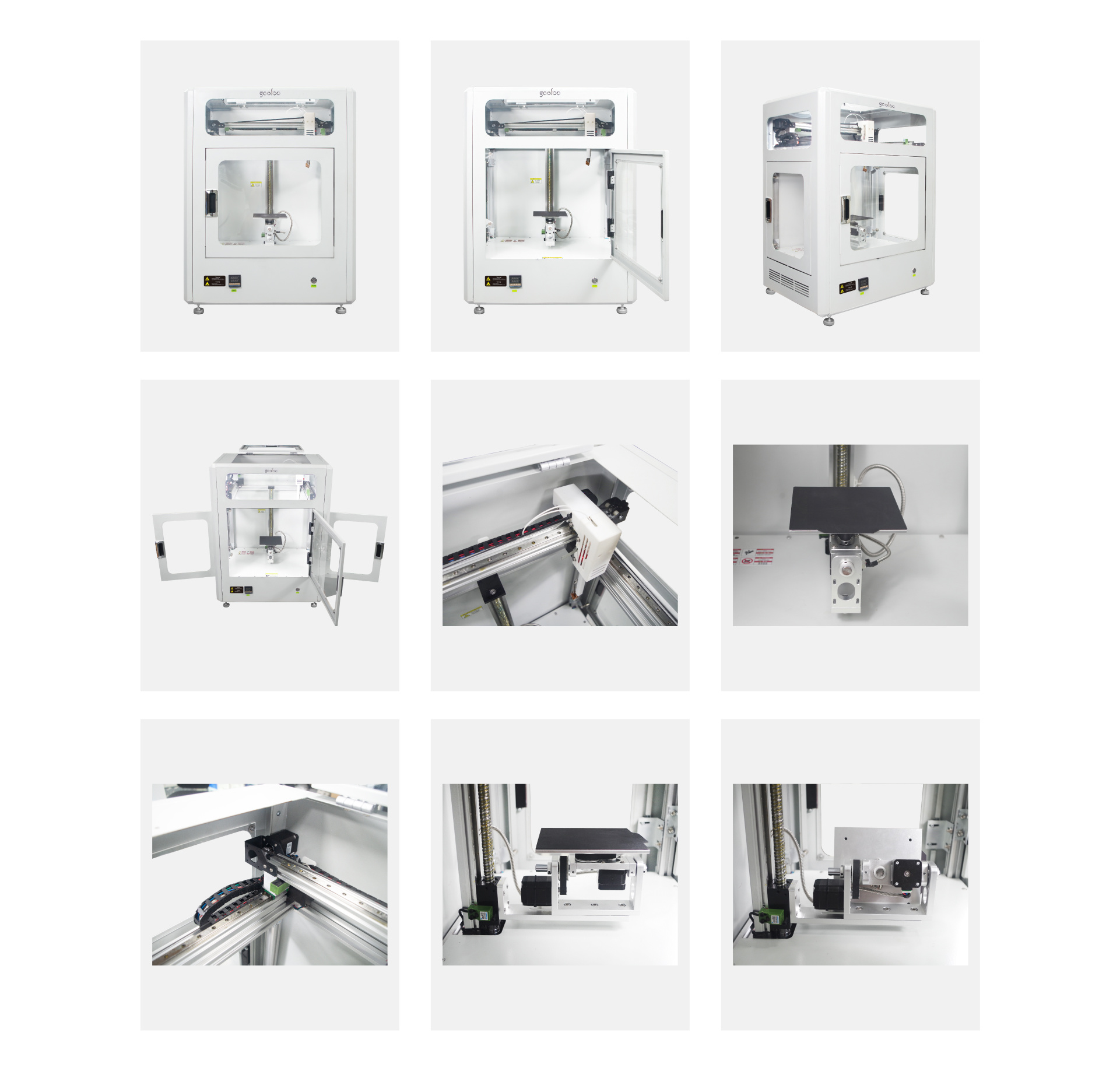

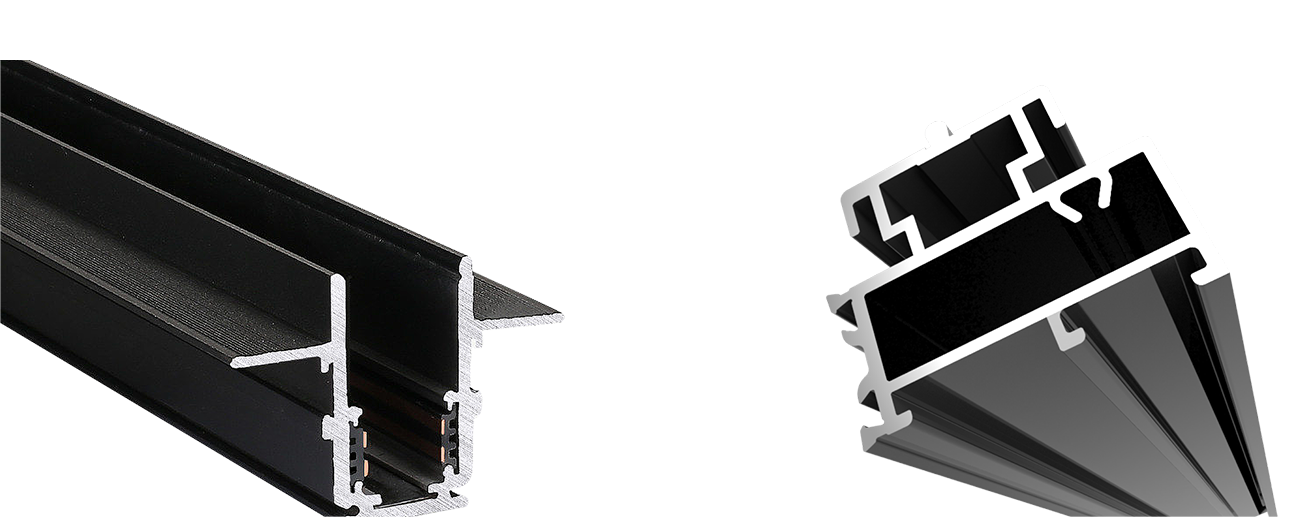

The solid structure and the high quality industrial components realize to print the largest objects with great detail.

Goofoo

Filament runout sensor

The filament run out sensor and power failure recovery are available to enable the stable printing with big model.
Goofoo

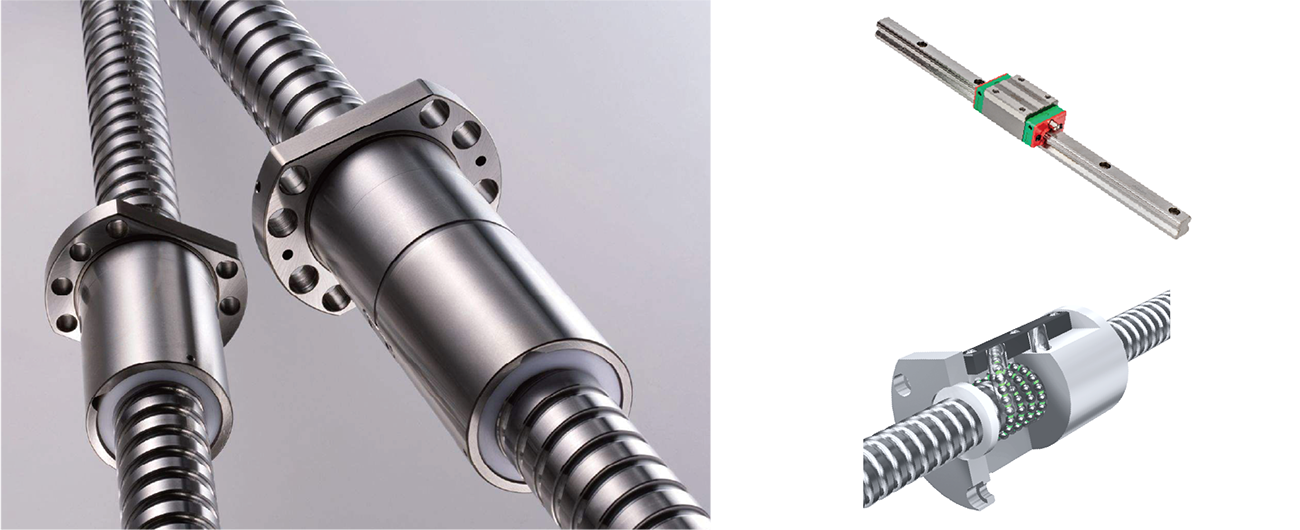

Z axis comes with 4pcs industrial level linear guide and 2pcs ball screw, enabling the most precision movement constrol and stable printing for the biggest model.

Goofoo

◆  5-Axis linkage realizes unsupported printing of complex work pieces, avoiding internal support and saving time and cost.

◆ Self-developed slicing software realizes simultaneous printing of different axial work pieces in one slicing, no need to splice the work pieces after printing.

◆ Customized composite print head, 3d printing + milling cutter/grinding head/laser engraving and other additive/subtract compound processing.





Product parameters



Print size150*150*200mm(3-axis)   280*230*280mm(5-axis)
Power inputAC220V~50/60HZ 360W
Print technologyFDM
Extrusion systemDirect extrusion system
No. of nozzleSingle
Heated bedNo heat bed
LevelingManual leveling
Nozzle diameter0.2/0.4/0.6/0.8/1.0mm
Print tempMax.260℃
Power failure recoverySupported
Material break detectionSupported
Input file formatSTL/TXT
Slicing softwareNozzleCAM
Operating systemWindows7、Windows10
Filament dia1.75 mm
Printing materialsPLA+ PC......
Body size (length x width x height)610*460*900mm
