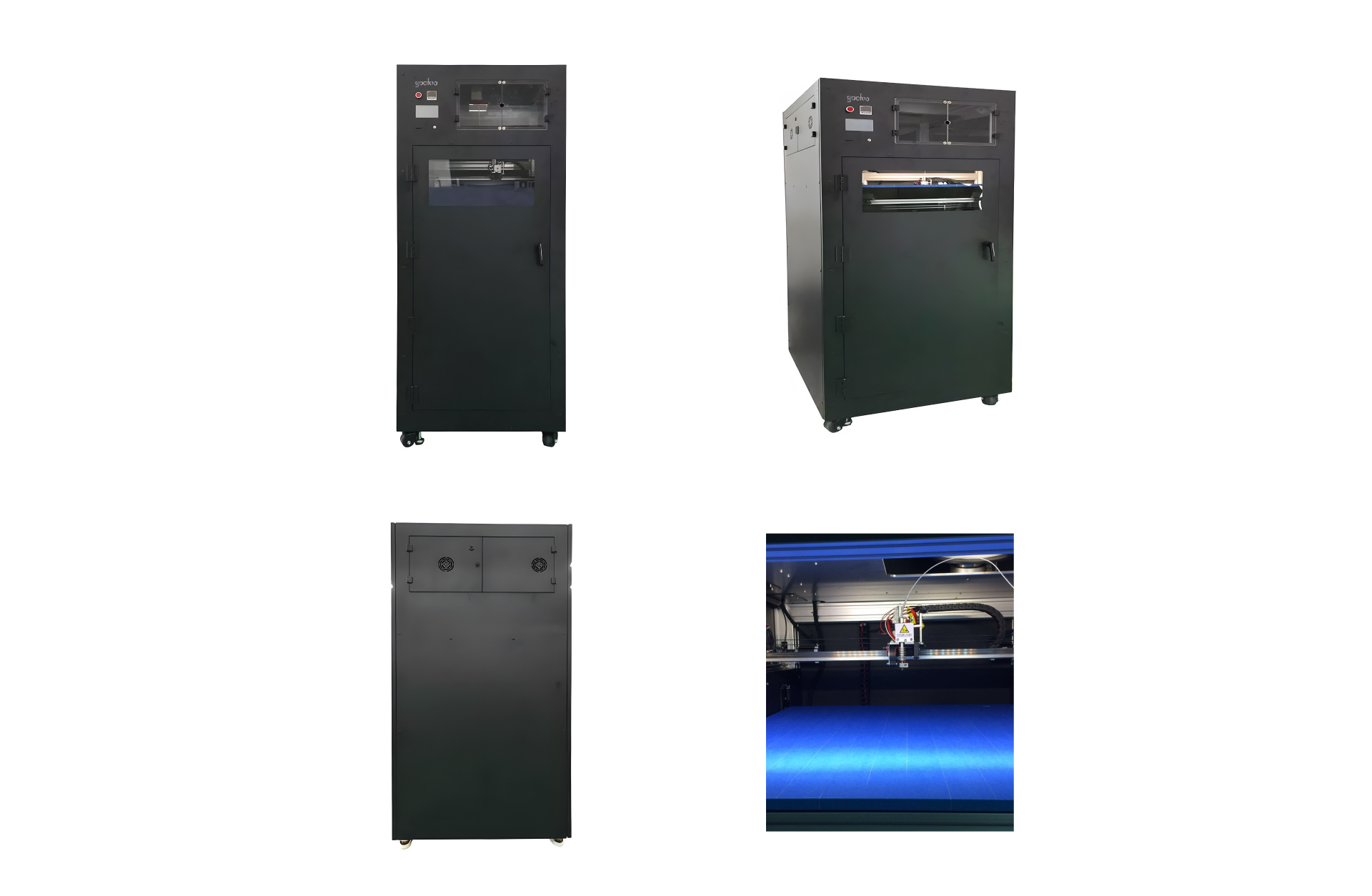

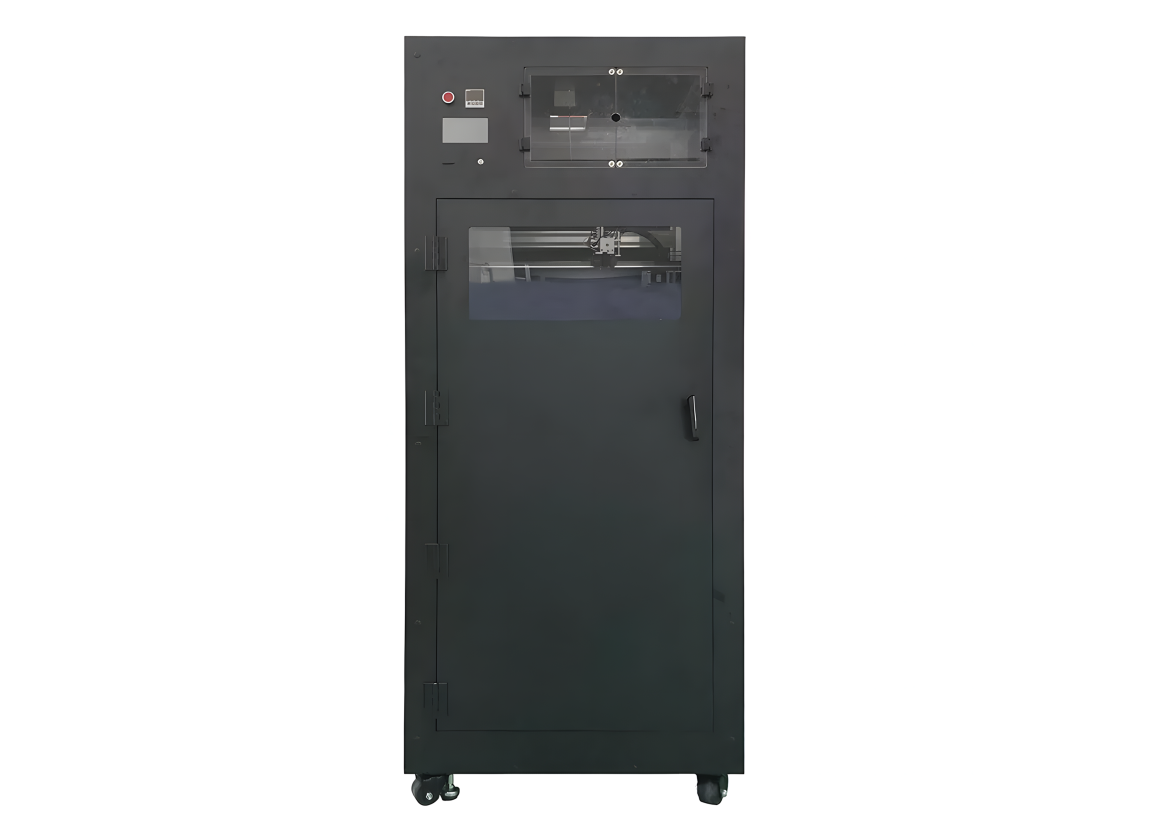

Large fdm professional 3d printer
Watch Video
max

Describe

Machine

Print model

图片名称

max

Patented Modular Extruder

max

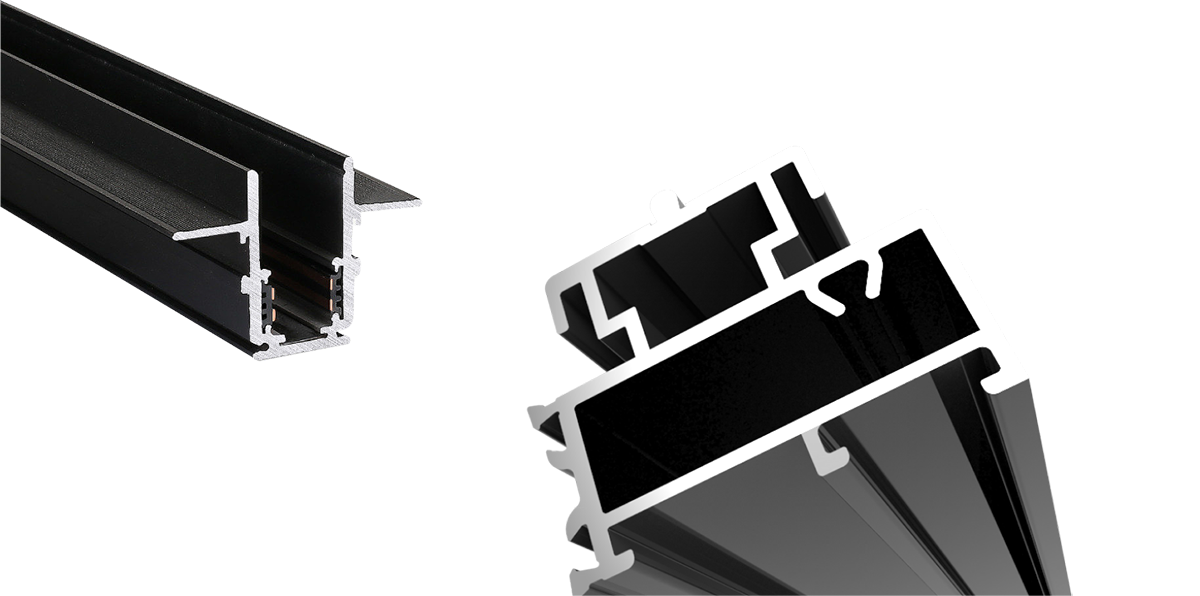

Aircraft-Grade Aluminium Profiles

max

Industrial Linear Guide Rail

max

Filament Runout Sensor

max

Intelligent Temperature Control System

max

Power Failure Recovery

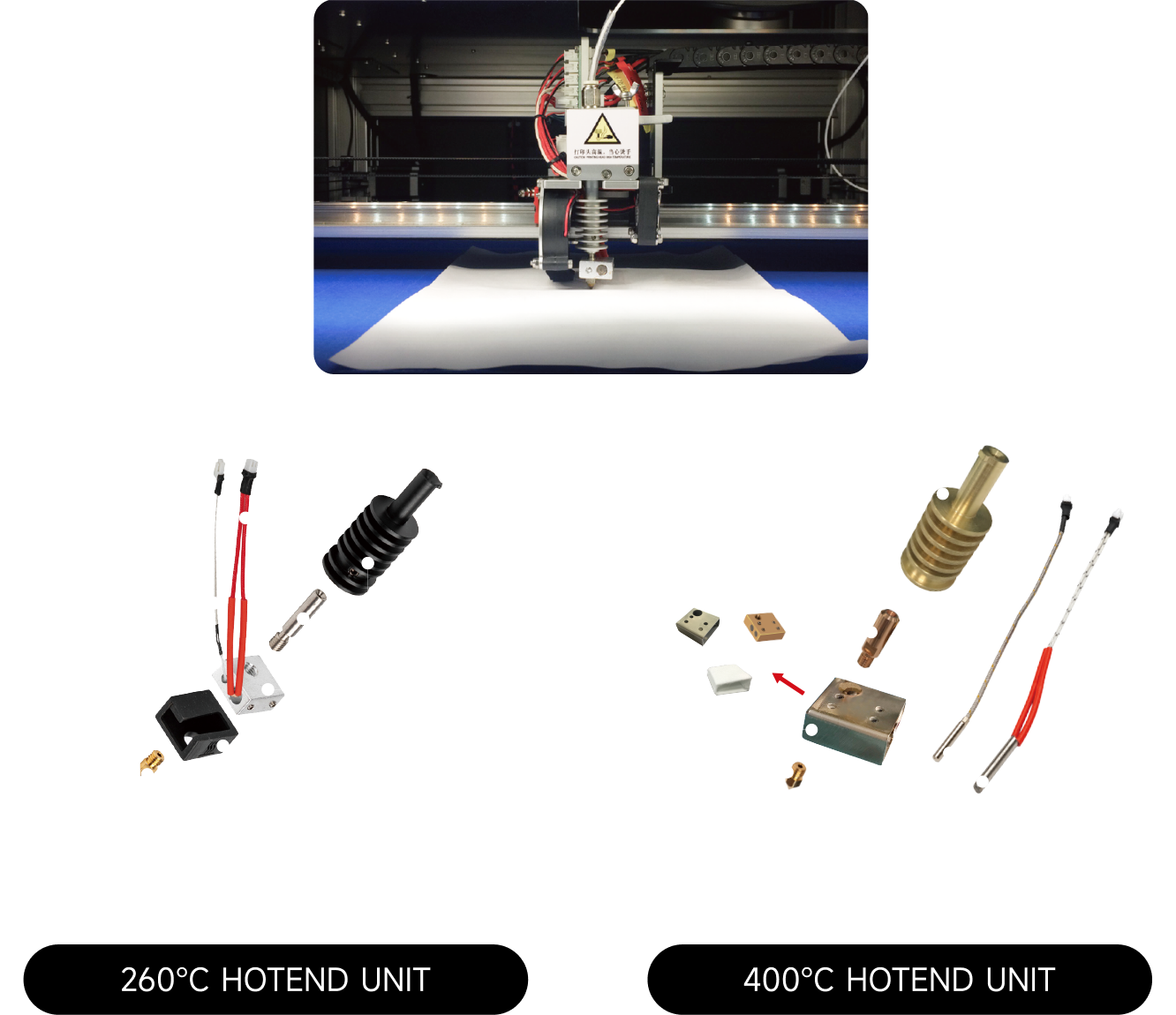

Patented modular extruder

◆ Easy Dismount For The Cleaning And Maintenance; ◆ Modular Design Enables The Extruder Work Well With Various Filament In The Market,No Limitation To PLA, ABS, PC, PP, PA, TPU, TPE, Carbon Fiber Etc.. ◆ The Extruder Can Be Replaced Between 260°℃ And 400°℃,Realizing The Printing WithLow And High Temperature Filament.
Goofoo

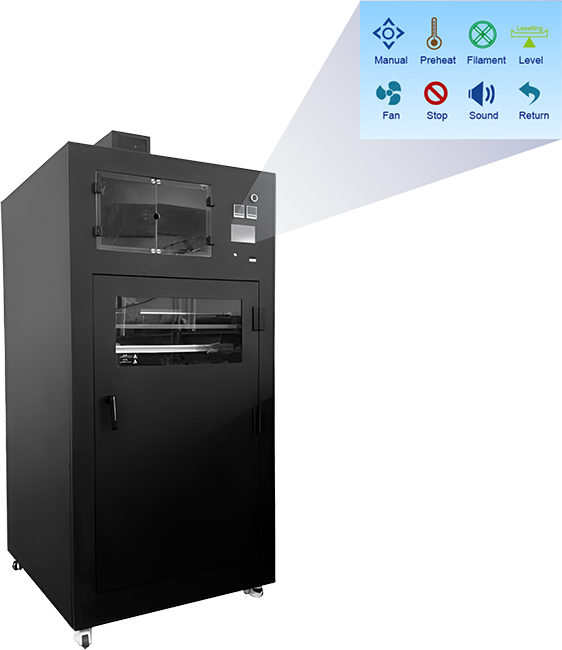

5" full-color touch screen

Goofoo

Intelligent temperature control system

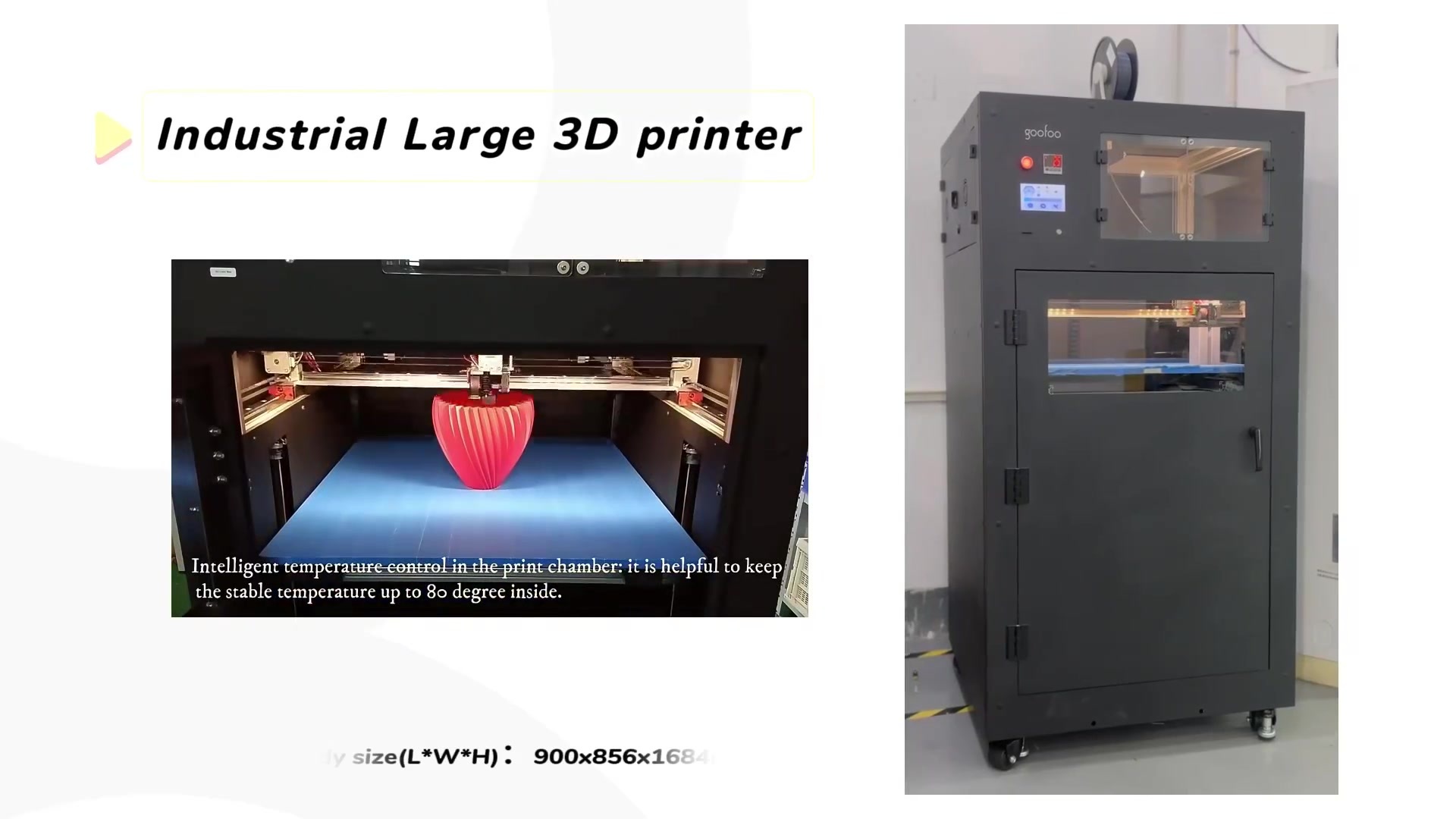

The temperature inside the chamber can be maintained up to 80℃ with the temperature control system.
Goofoo

The solid structure and the high quality industrial components realize to print the largest objects with great detail.

Goofoo

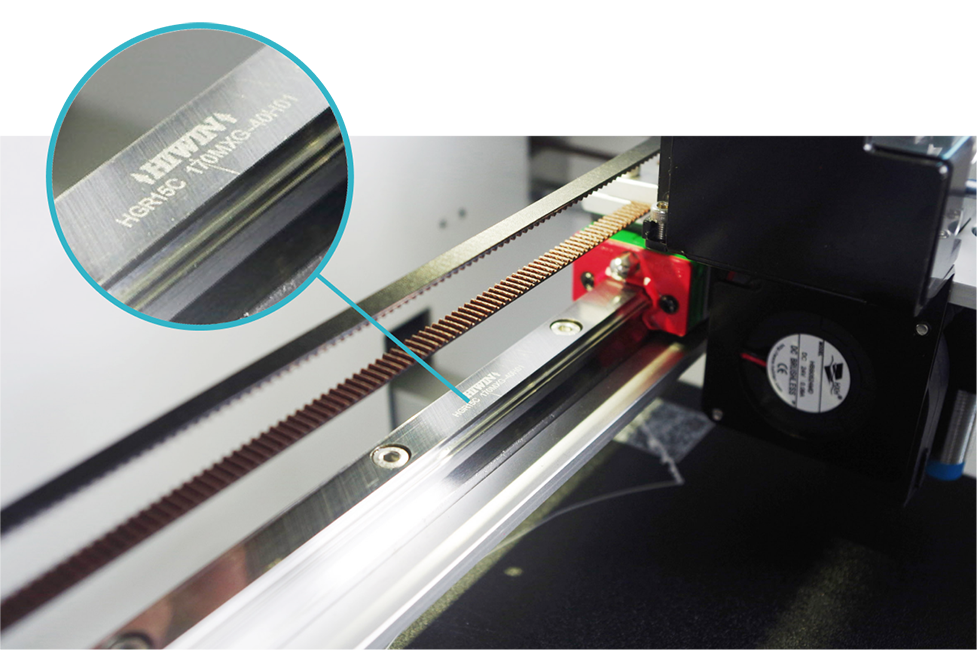

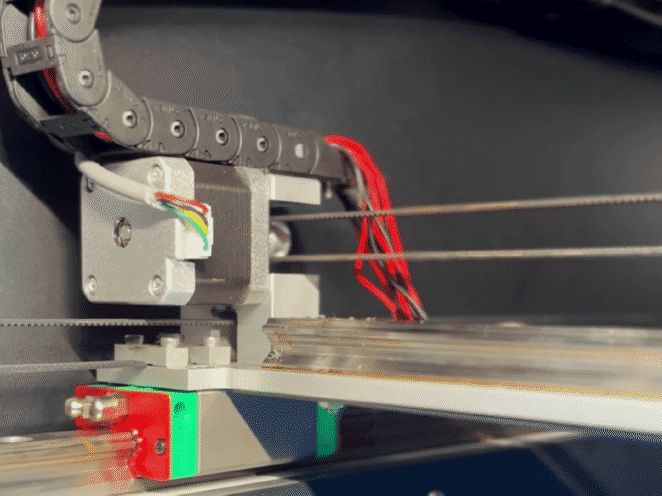

Linear motion guide actuator

The x axis, y axis and z axis are all equipped with industrial linear guide ensure the stalbe and precision movement control even after long time printing.
Goofoo

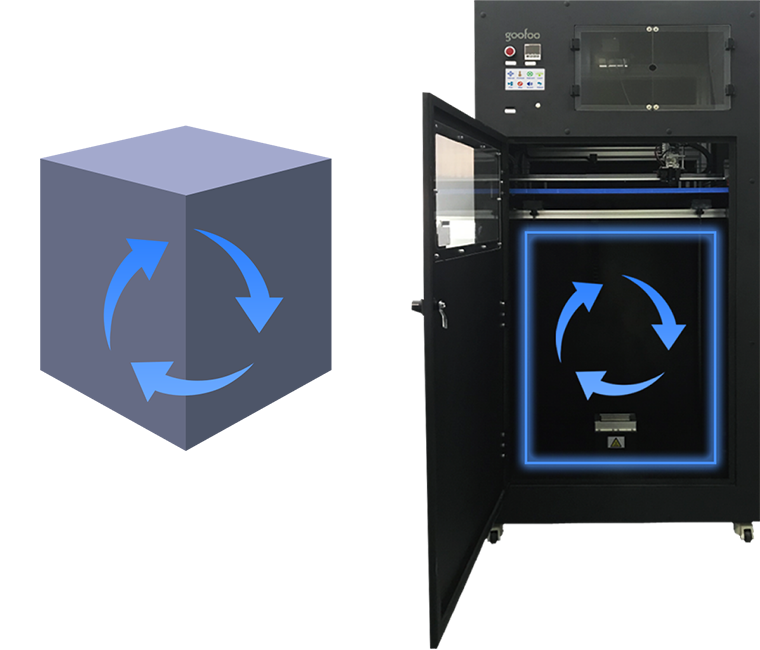

Resume printing function after power interruption.

Goofoo

Filament runout sensor

The filament run out sensor and power failure recovery are available to enable the stable printing with big model.
Goofoo

Details, quality, valume

Supreme quality, perfect details.
Goofoo

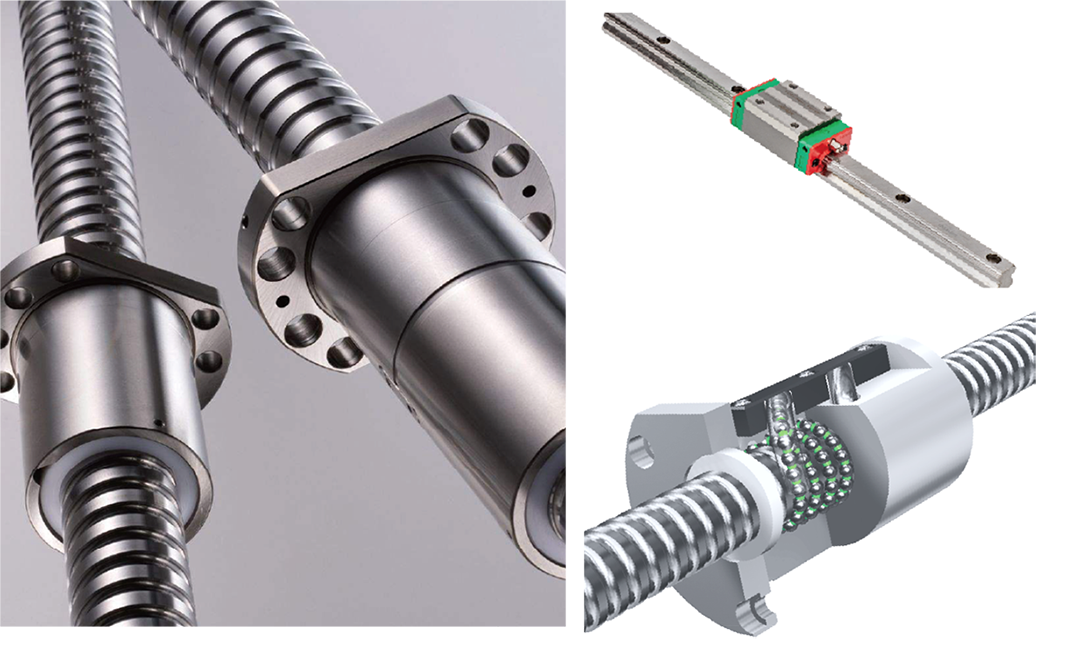

Z axis comes with 4pcs industrial level linear guide and 2pcs ball screw, enabling the most precision movement constrol and stable printing for the biggest model.

Goofoo

Key features

√ Large Build Volume

√ 7*24hr Stable Printing

√ Intelligent And Worry-Free Operation Process: Power Loss Recovery System, FilamentRun Out Sensor, Wi-Fi Connectivity

√ Powerful Operation System: Heating Chamber With Intelligent Temperature ControlSystem

√ High Efficiency And Compatible With Wide Range Of Filaments: PLA, ABS, PETG, PC,PP, PA, TPU, Elastic, PA-Carbon Fiber, PA-Glass Fiber, PEEK, Etc.







Product parameters

Print size600*580*700 mm
Power inputAC110V~3200W/220V~3200W
Print technologyFDM
Extrusion systemDirect extrusion system
No. of nozzleSingle
Heated bedMax.120℃
Printing chamber temperatureMax. 70℃
LevelingAutomatic leveling
Nozzle diameter0.2/0.4/0.6/0.8/1.0 mm
Print tempMax.260℃/Max.400℃(optional)
ConnectivityWi-Fi/ SD card
Power failure recoverySupported
Material break detectionSupported
Input file formatAMF/STL/OBJ
Slicing softwareCura/slic3r/simplified3d/ goofoo slicer
Operating systemWindows, MacOS, Linux
Filament dia1.75 mm
Printing materialsPLA+ TPE ABS  PA-CF PC TPU 95A PET-GF PEEK  ASA......
Body size (length x width x height)900*856*1684 mm
