    ABOUT US
    图片名称
    图片名称
    INDUSTRIAL LARGE SIZE
    LEARN MORE
    GET A QUOTE

    Describe

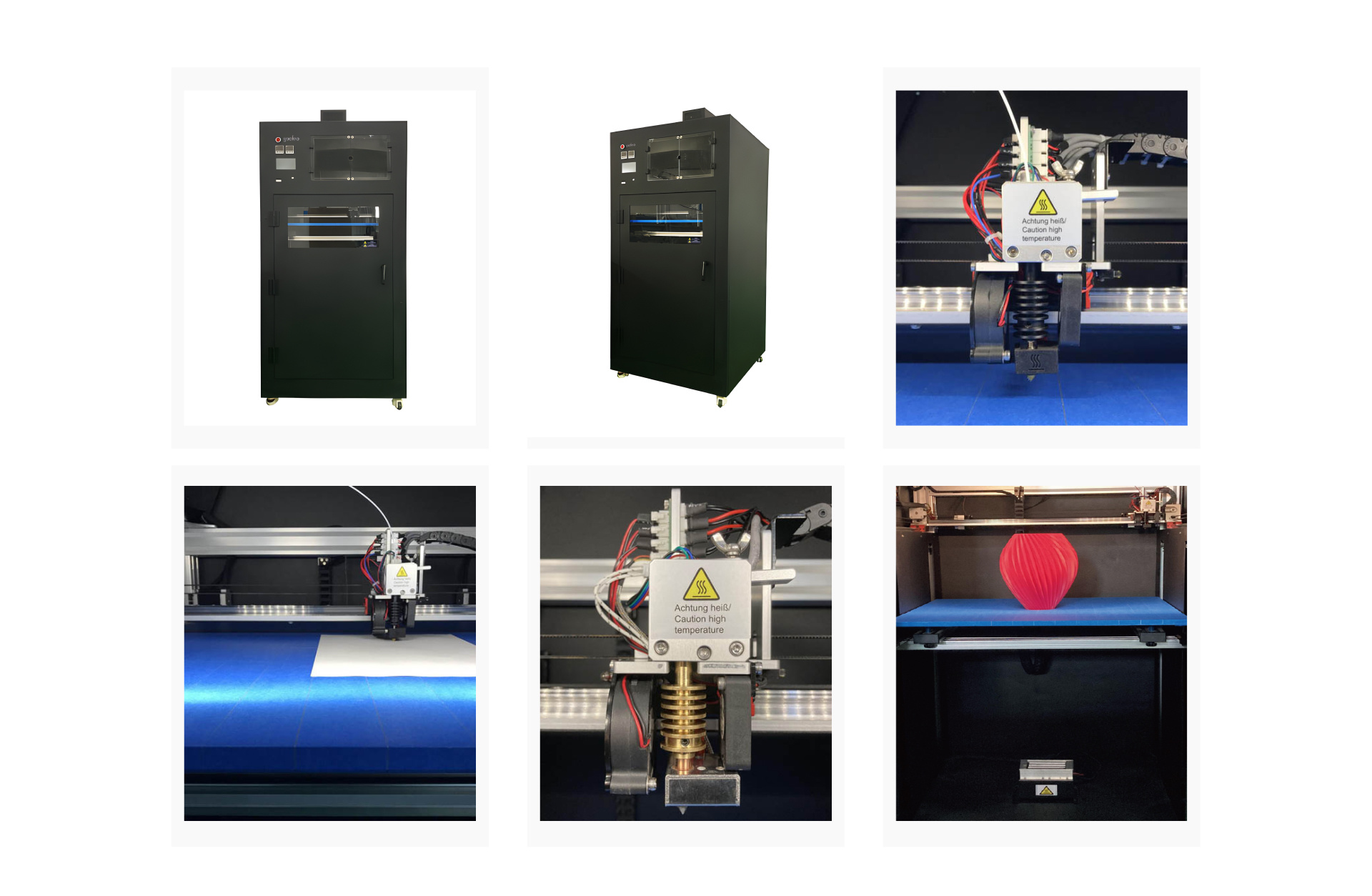

    Machine

    Print model

    图片名称

    Giant

    Patented Modular Extruder

    Giant

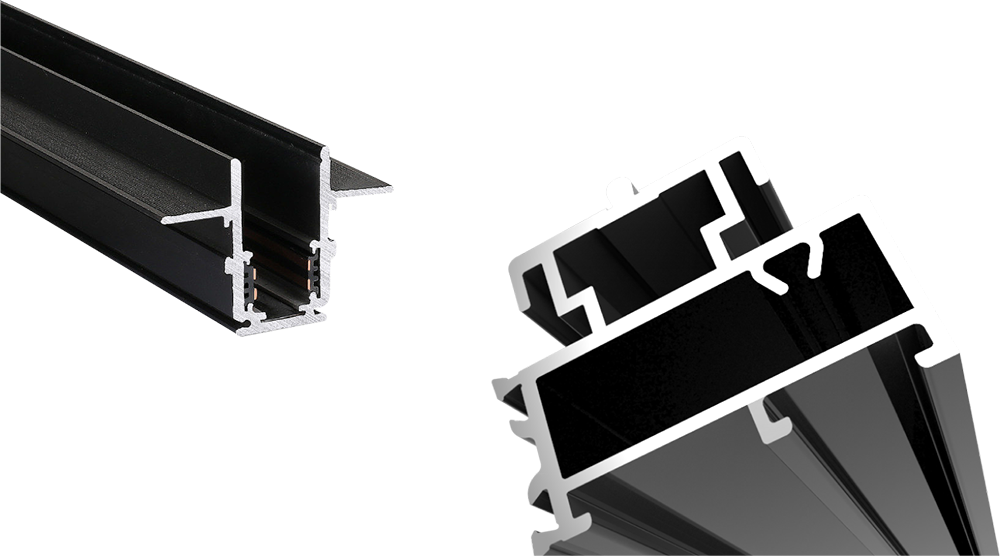

    Aircraft-Grade Aluminium Profiles

    Giant

    Industrial Linear Guide Rail

    Giant

    Filament Runout Sensor

    Giant

    Intelligent Temperature Control System

    Giant

    Power Failure Recovery

    Key features

    √ Large Build Volume √ 7*24hr Stable Printing √ Intelligent And Worry-Free Operation Process: Power Loss Recovery System, Filament Run Out Sensor, Wi-Fi Connectivity √ Powerful Operation System: Heating Chamber With Intelligent Temperature Control System √ High Efficiency And Compatible With Wide Range Of Filaments: PLA, ABS, PETG, PC, PP, PA, TPU, Elastic, PA-Carbon Fiber, PA-Glass Fiber, PEEK, Etc.
    Goofoo

    Patented modular extruder

    ◆Easy Dismount For The Cleaning And Maintenance; ◆Modular Design Enables The Extruder Work Well With Various Filament In The Market, No Limitation To PLA, ABS, PC, PP, PA, TPU, TPE, Carbon Fiber Etc.. ◆The Extruder Can Be Replaced Between 260°C And 400°C,Realizing The Printing With Low And High Temperature Filament.
    Goofoo

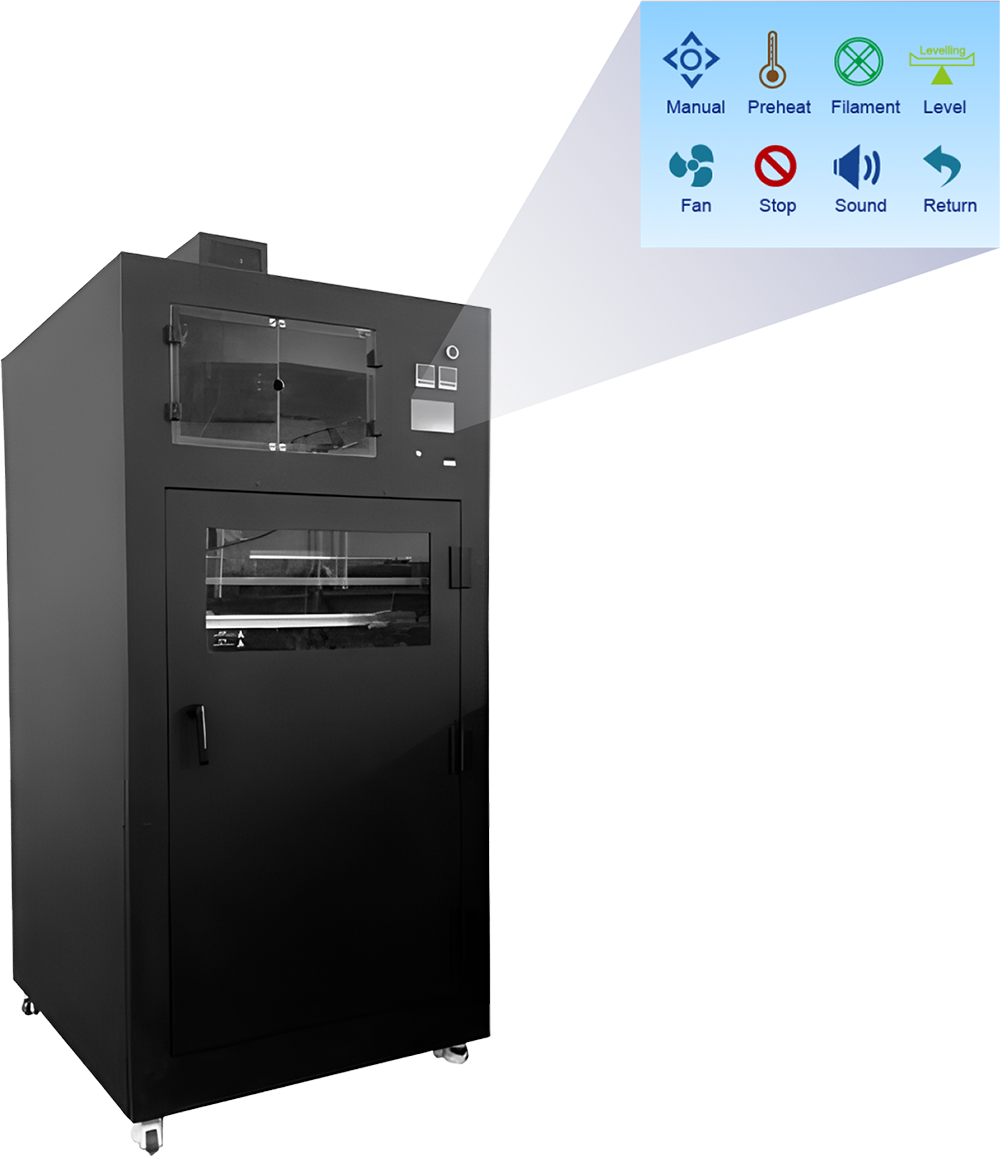

    5" full-color touch screen

    Goofoo

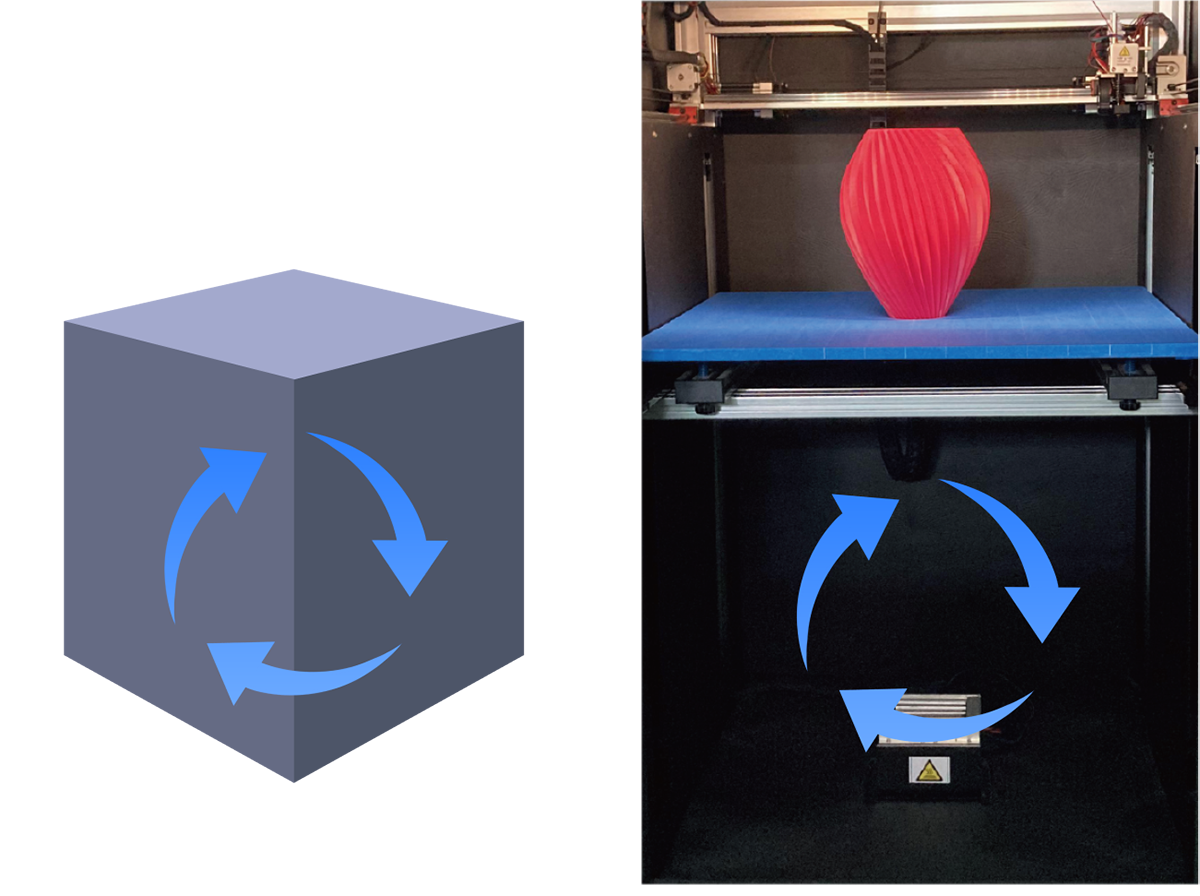

    Intelligent temperature control system

    The temperature inside the chamber can be maintained up to 80°C with the temperature control system.
    Goofoo

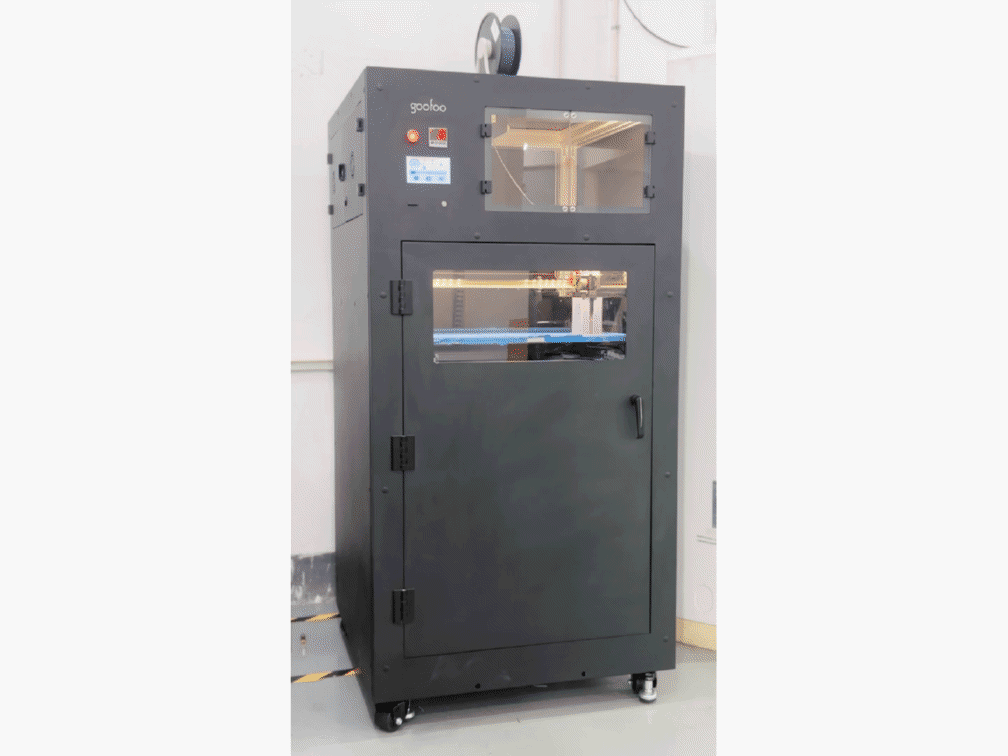

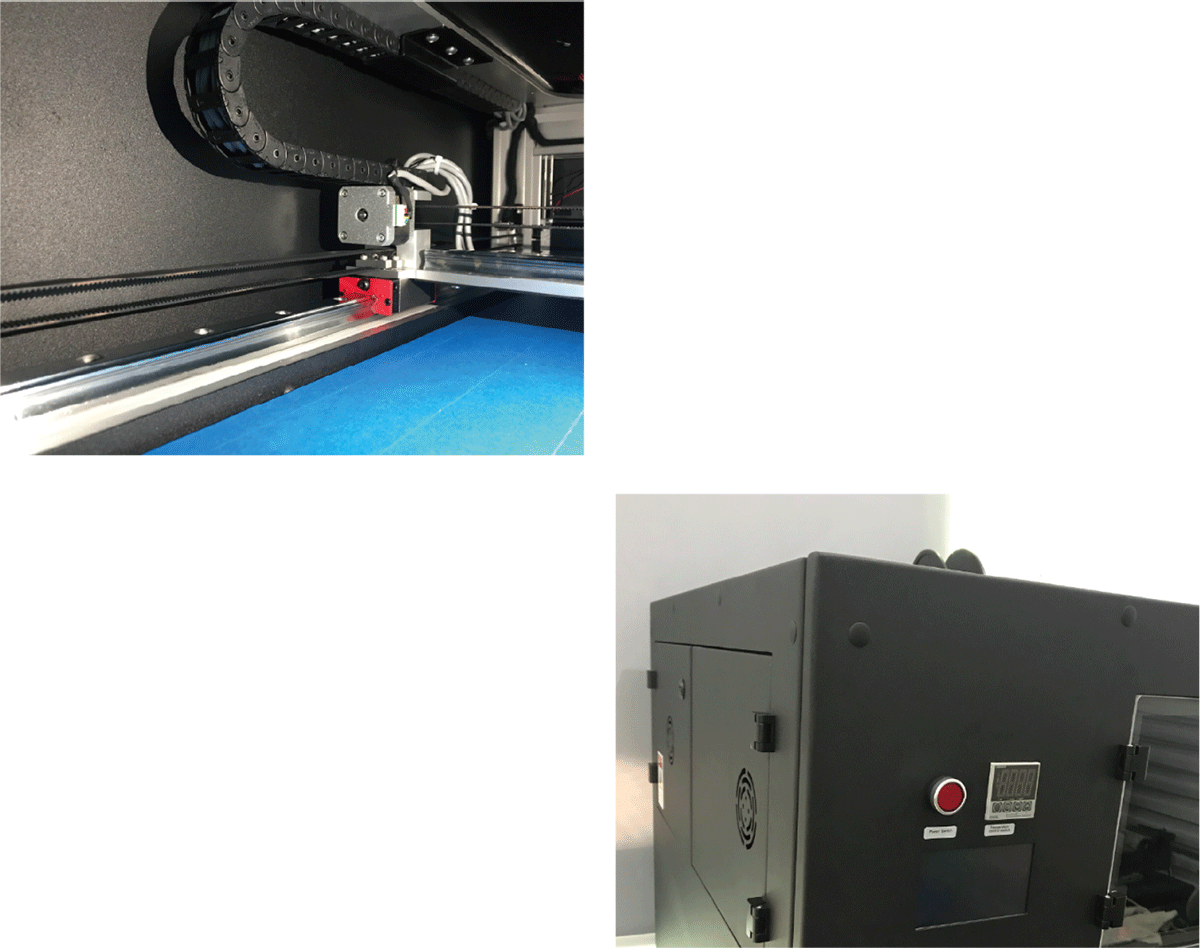

    The solid structure and the high quality industrial components realize to print the largest objects with great detail.

    Goofoo

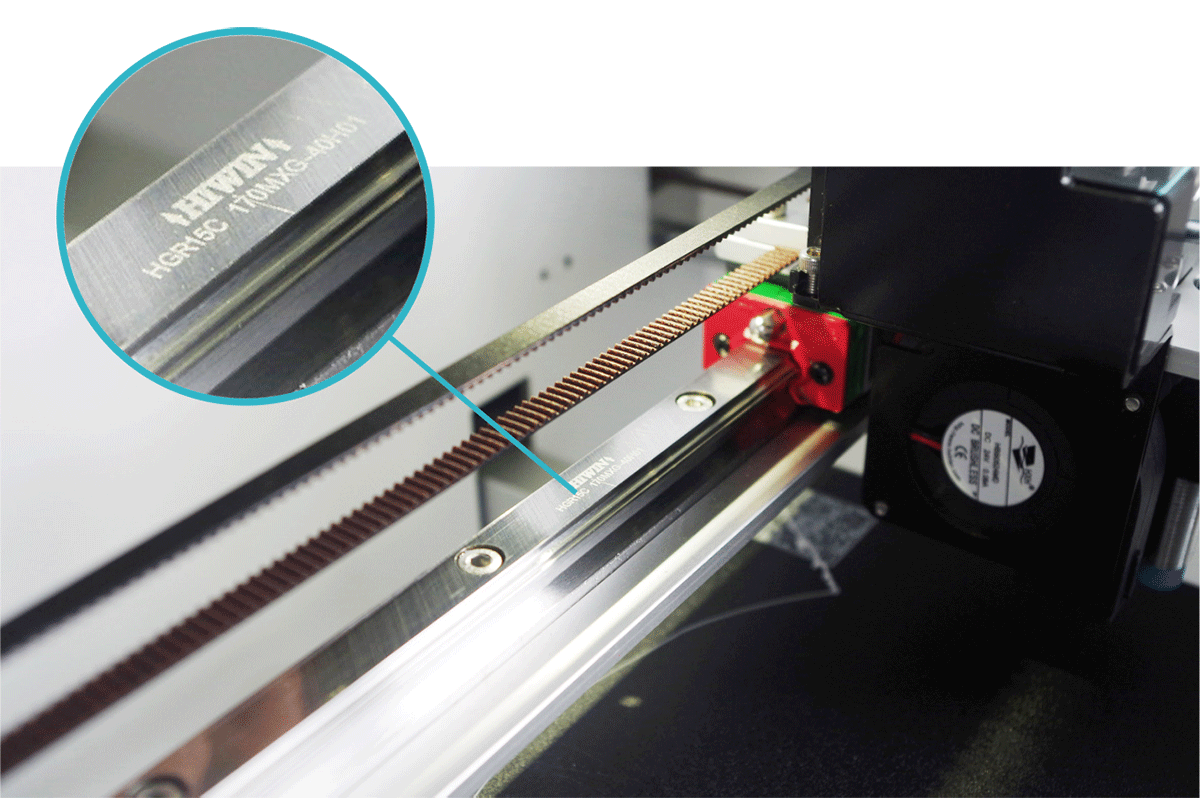

    Linear motion guide actuator

    The x axis, y axis and Z axis are all equipped with industrial linear guide ensure the stalbe and precision movement control even after long time printing.
    Goofoo

    Resume printing function after power interruption.

    Goofoo

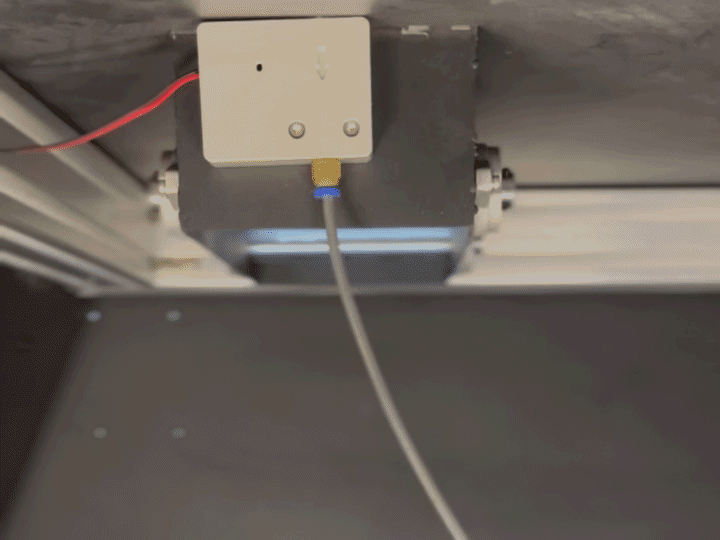

    Filament runout sensor

    The filament run out sensor and power failure recovery are available to enable the stable printing with big model.
    Goofoo

    Details, quality, valume

    Supreme quality, perfect details.
    Goofoo

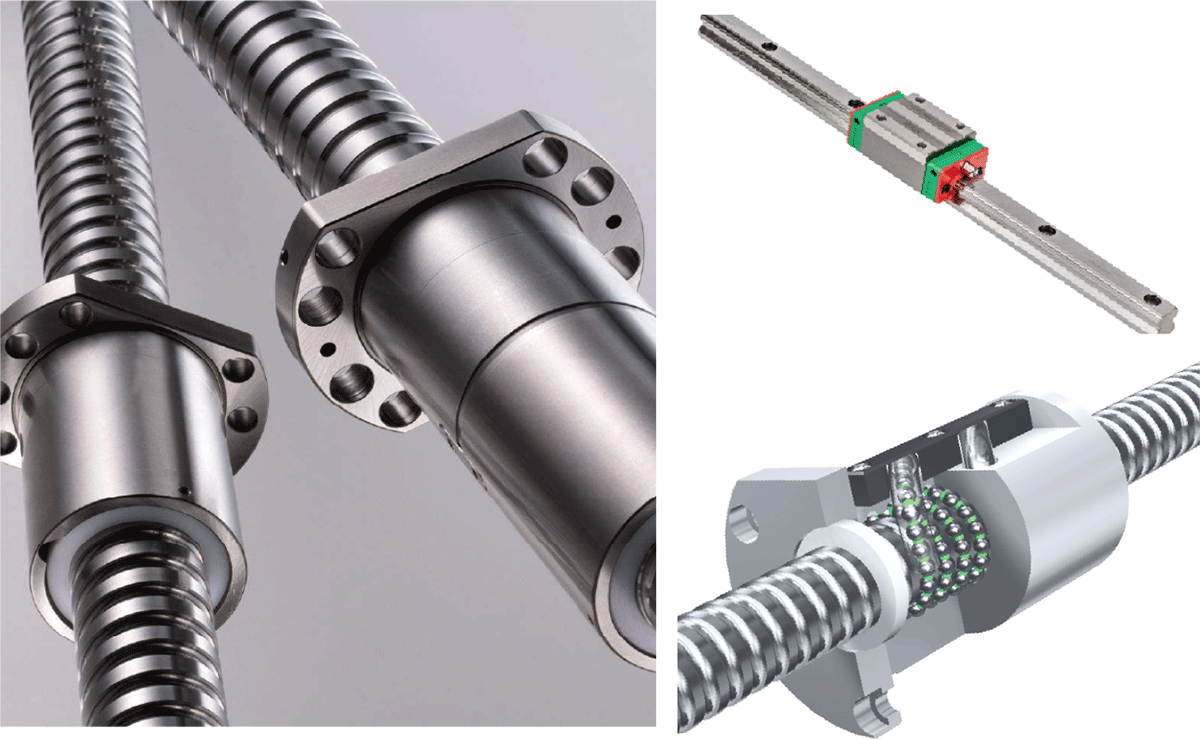

    Z axis

    Z axis comes with 4pcs industrial level linear guide and 2pcs ball screw, enabling the most precision movement constrol and stable printing for the biggest model.
    Goofoo

    Product parameters

    Print size600*600*1000 mm
    Power inputAC110V~3200W/220V~3200W
    Print technologyFDM
    Extrusion systemDirect extrusion system
    No. of nozzleSingle
    Heated bedMax.120℃
    Printing chamber temperatureMax. 70℃
    LevelingManual leveling
    Nozzle diameter0.2/0.4/0.6/0.8/1.0 mm
    Print tempMax.260℃/Max.400℃(optional)
    ConnectivityWi-Fi/ SD card
    Power failure recoverySupported
    Material break detectionSupported
    Input file formatAMF/STL/OBJ
    Slicing softwareCura/slic3r/simplified3d/ goofoo slicer
    Operating systemWindows, MacOS, Linux
    Filament dia1.75 mm
    Printing materialsPLA+ TPE ABS  PA-CF PC TPU 95A PET-GF PEEK  ASA......
    Body size (length x width x height)900*870*2000 mm
