    HEATED RESIN MIXER
    LEARN MORE
    GET A QUOTE
    HMO1

    Describe

    Machine

    Print model

    图片名称

    Product Features

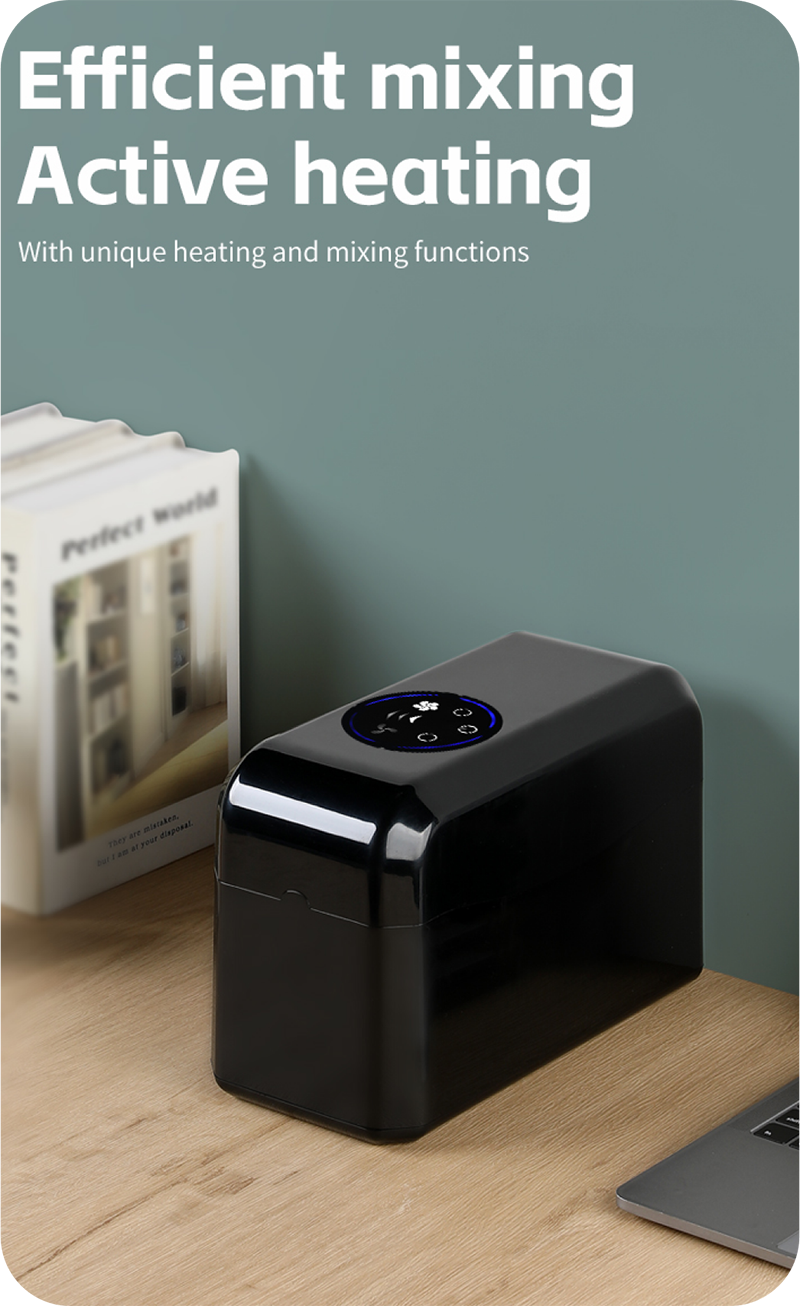

    Efficient Mixing Active Heating Easy To Operate Widely Applicable
    Goofoo

    Improve 3D printing success rate ensure quality consistency

    Goofoo

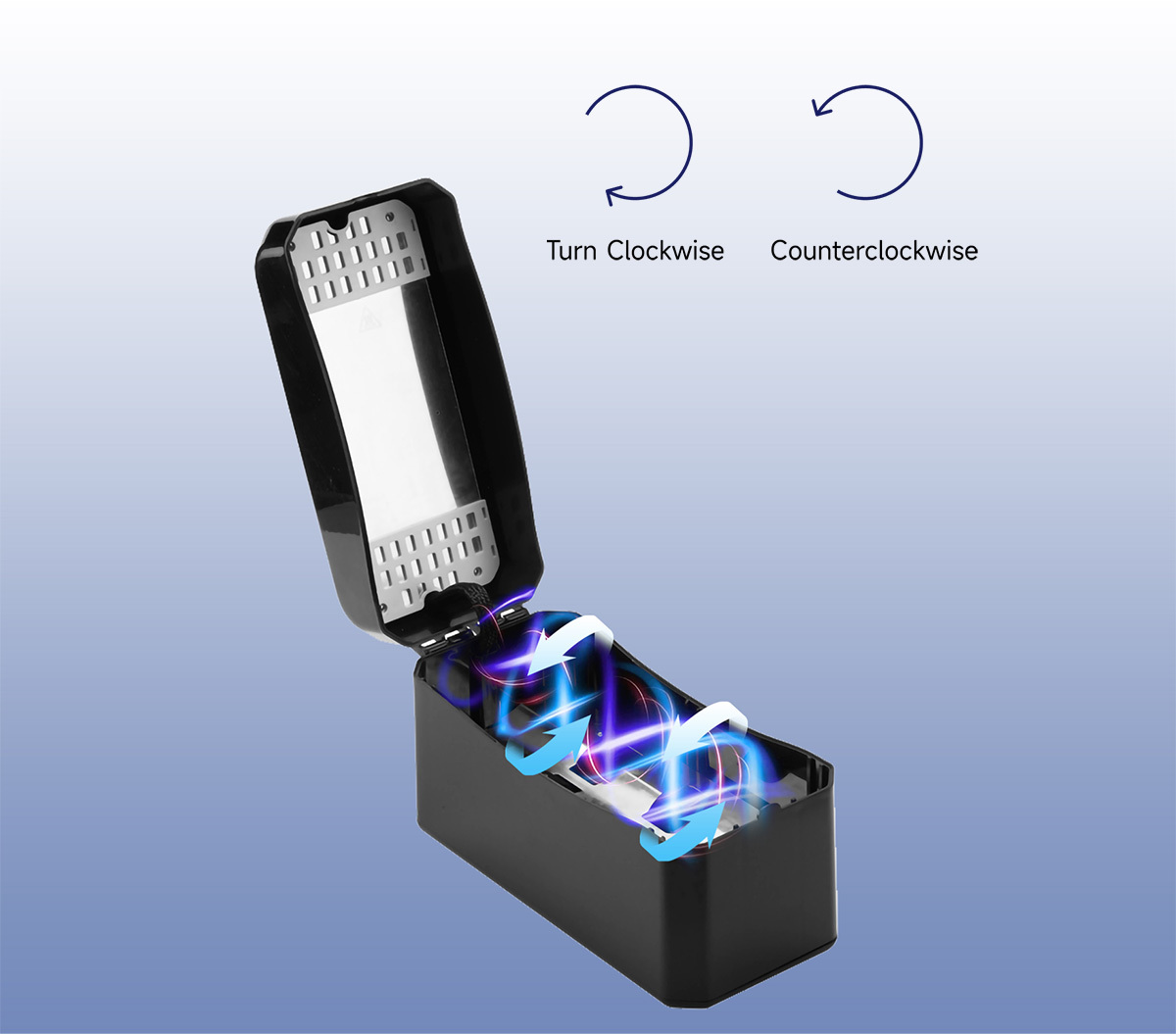

    Efficient mixing

    High speed, low speed,forward and reverse two-way shakingautomatic steering
    Goofoo

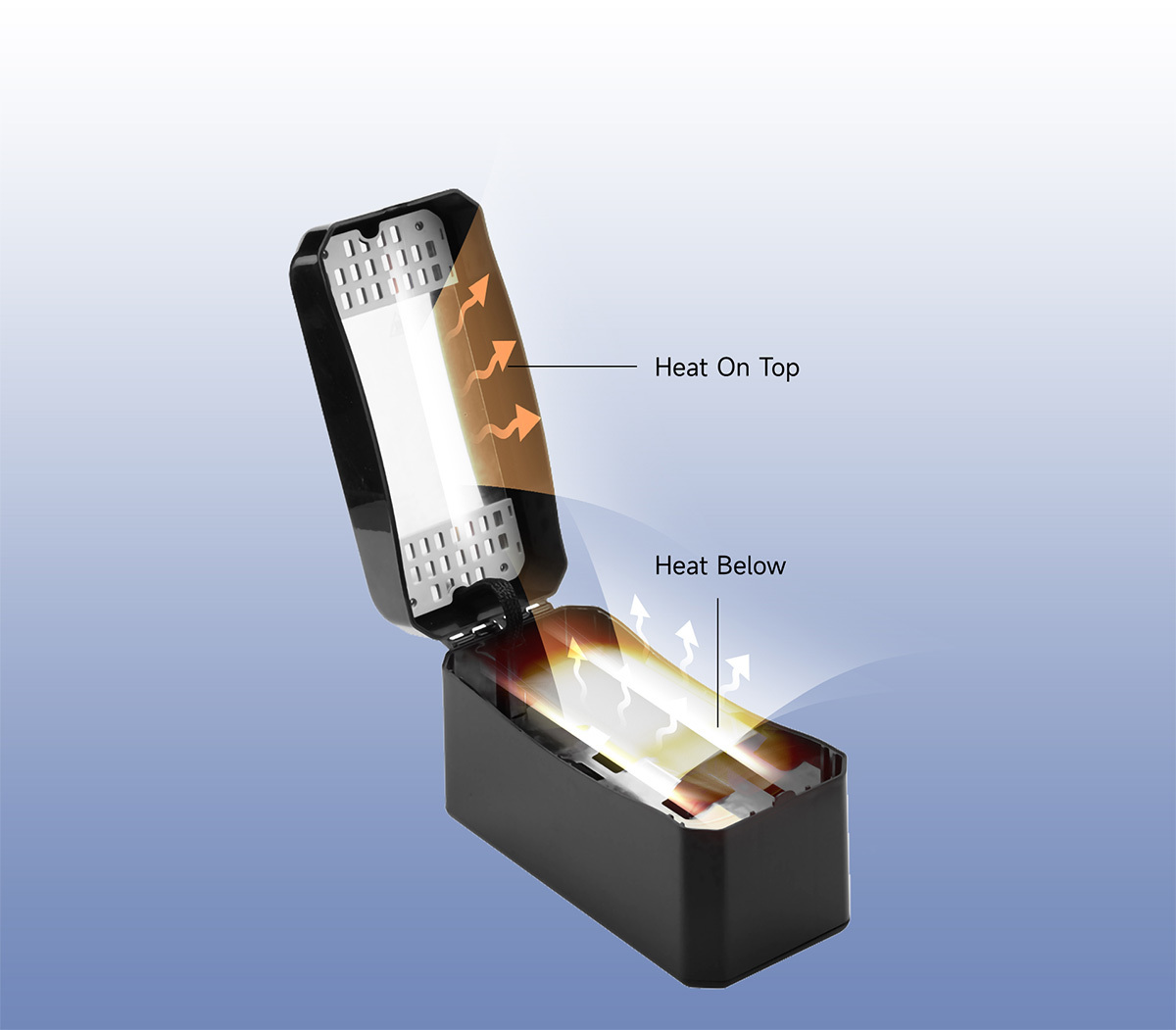

    Active heating

    No heating, 40°c, 50°c three modes availableupper and lower surroundheating design,efficient heating
    Goofoo

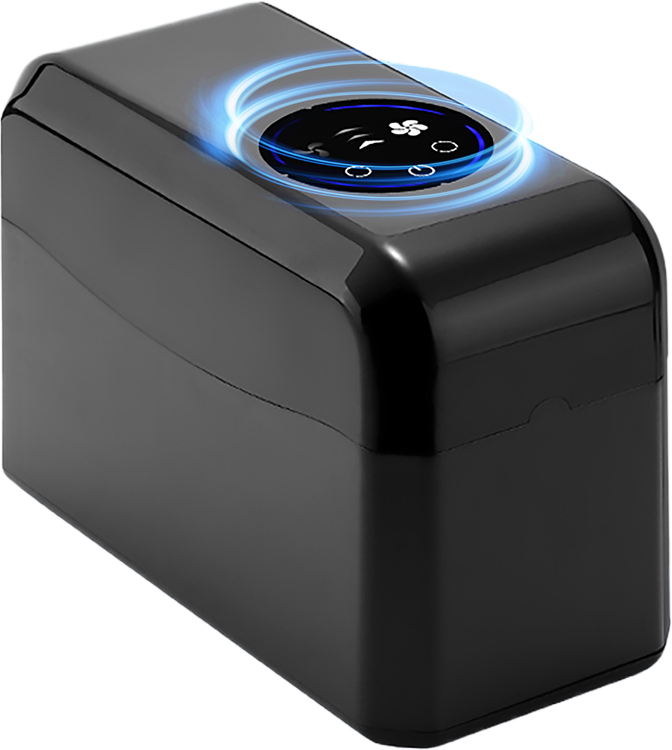

    Easy to use

    Simple function, touch operation,and display of running lights
    Goofoo

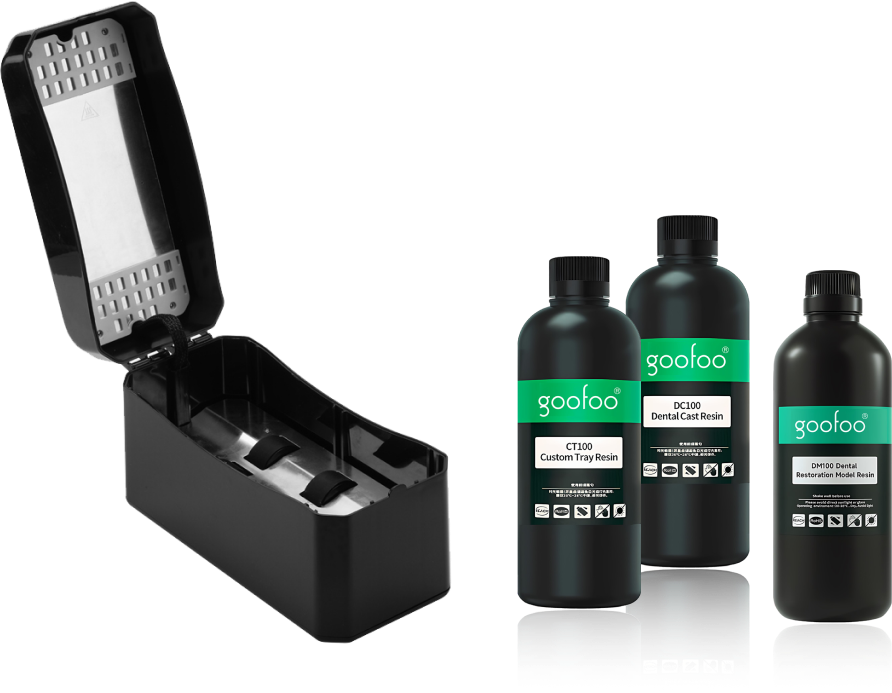

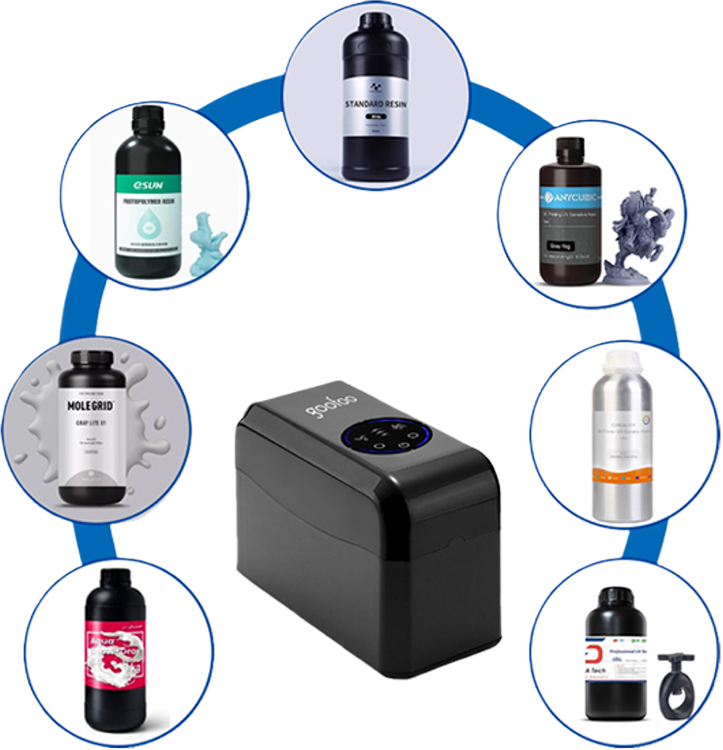

    Widely applicable

    Compatible with multiplebrands and specifications Suitable for most resin bottles on themarket including common 250/500/1000g
    Goofoo

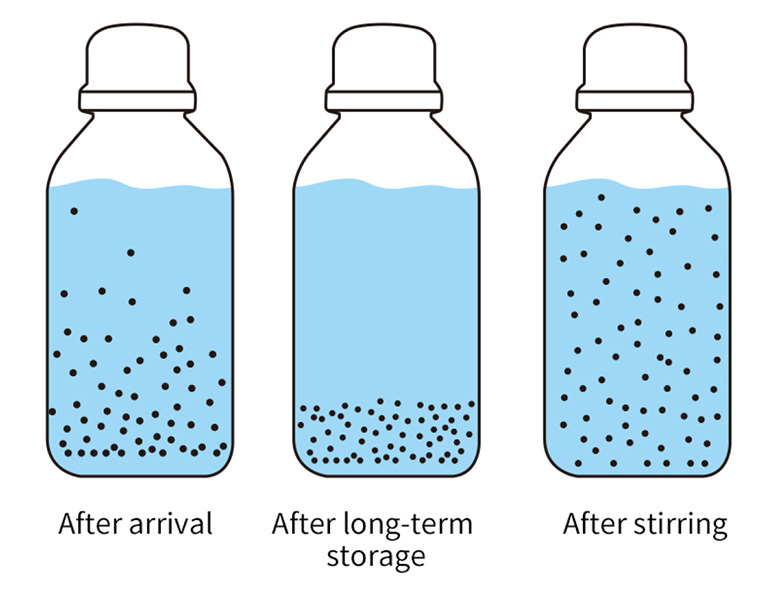

    Why do you need to shake the resin well?

    Photosensitive resin is a colloidal substance composed of polymers. the denser particles inside are easy to settle. uneven resin can easily lead to printing failure or poor quality .shaking the resin evenly can improve the success rate of printing and ensure the quality of printed products. uniform and stable.
    Goofoo

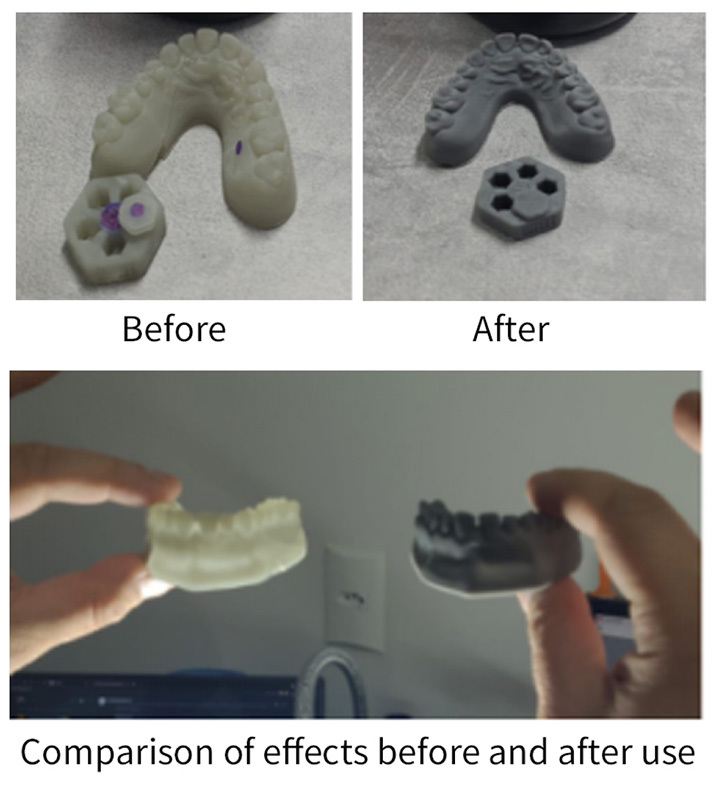

    Comparison of usage effects

    Goofoo

    Why does resin need to be heated before printing?

    Some resin materials have high viscosity and low fluidity. heating can greatly reduce the viscosity of the material and can be used for printing; some resins are transported in solid form and must be heated and melted before printing; resins are generally required to be printed in an environment of 25-30°C, the resin placed at low temperature has high viscosity and low activity, which is not conducive to printing. heating before printing can improve the printing success rate. note that the pre-printing heating function is recommended to be used with a printer with a heater to ensure temperature stability during the printing process. in addition, some resins that are not resistant to low temperatures (such as casting resins) will precipitate some components after being stored in a low-temperature environment, and require heating to fully dissolve.
    Goofoo

    Product parameters

    Product nameHeated resin mixer
    Rotate speed35/50 rpm
    Input powerAC100V-240V,50/60 Hz
    Output powerDC 24±1.2 V,2 A
    Max woking electricity1.8 A
    Max working Power48 W
    Product net weight1300 g
    Product gross weight1530 g
    Maximum load bearing1 kg
    Applicable specifications250/500/1000g
    Product size270(L)x125 (W)x170(H)mm
    Packing size285 (L)x 155 (W)x210 (H)mm
    Product certificationsFCC/CE/RoHS
