    SPEEDY SOLID PROFESSIONAL
    LEARN MORE
    GET A QUOTE

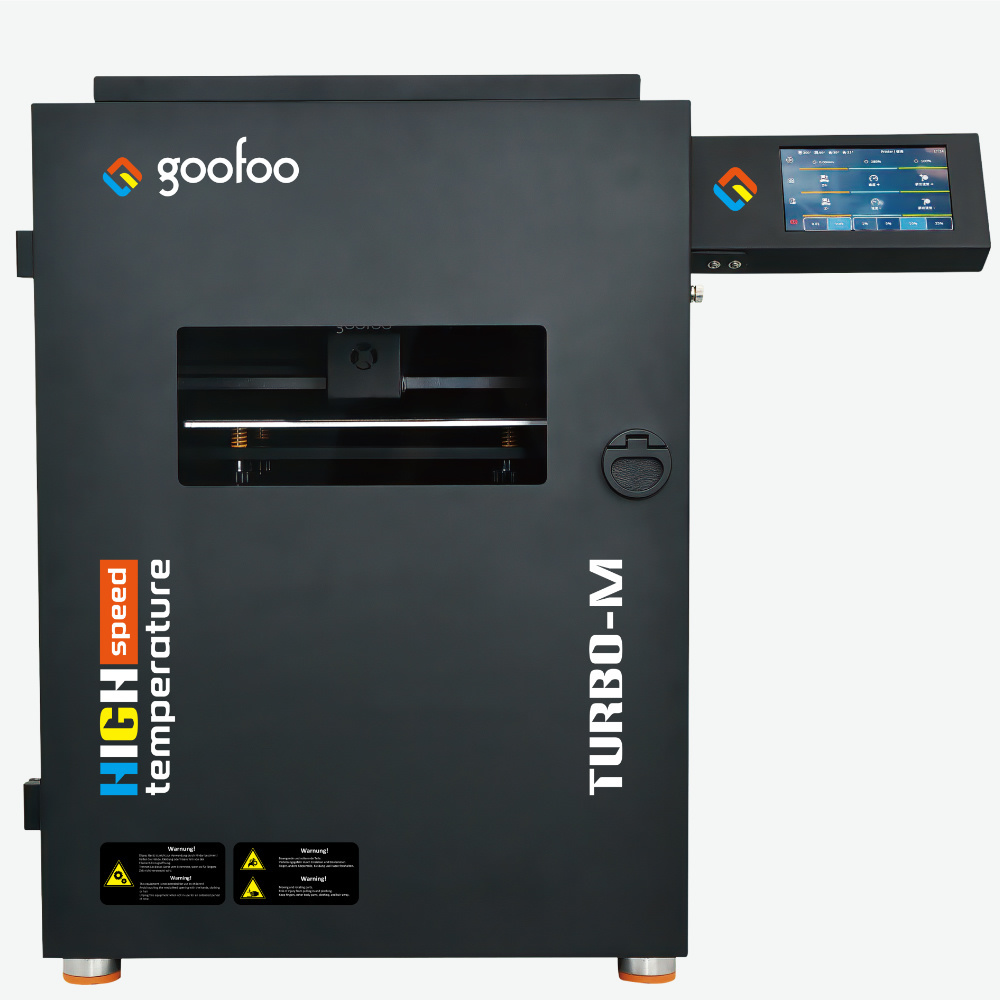

    Turbo-M

    Describe

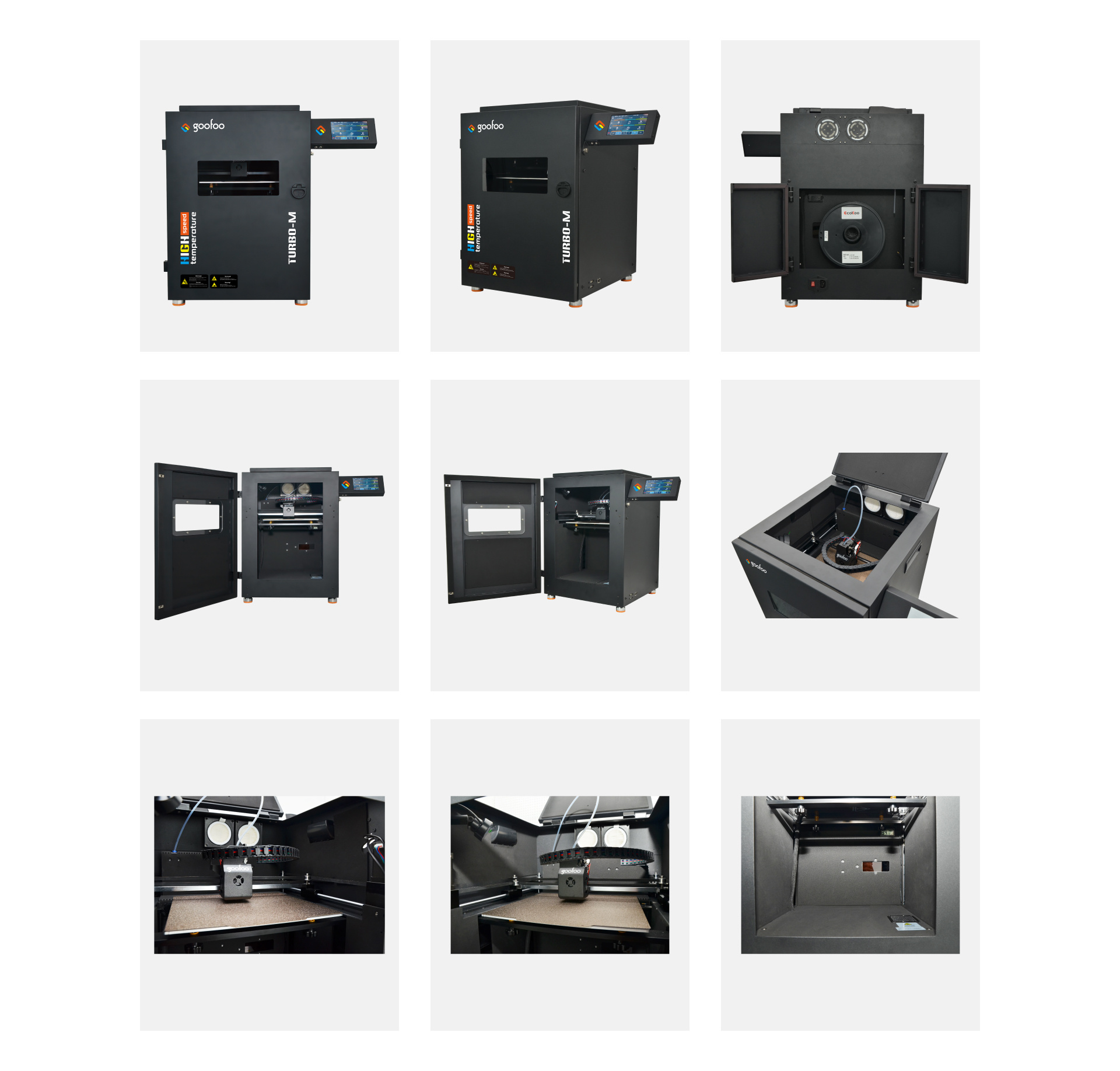

    Machine

    Print model

    图片名称

    Turbo-M

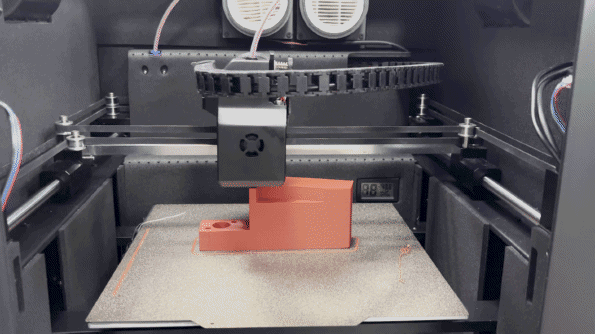

    High speed printing

    Turbo-M

    Aircraft-Grade Aluminium Profiles

    Turbo-M

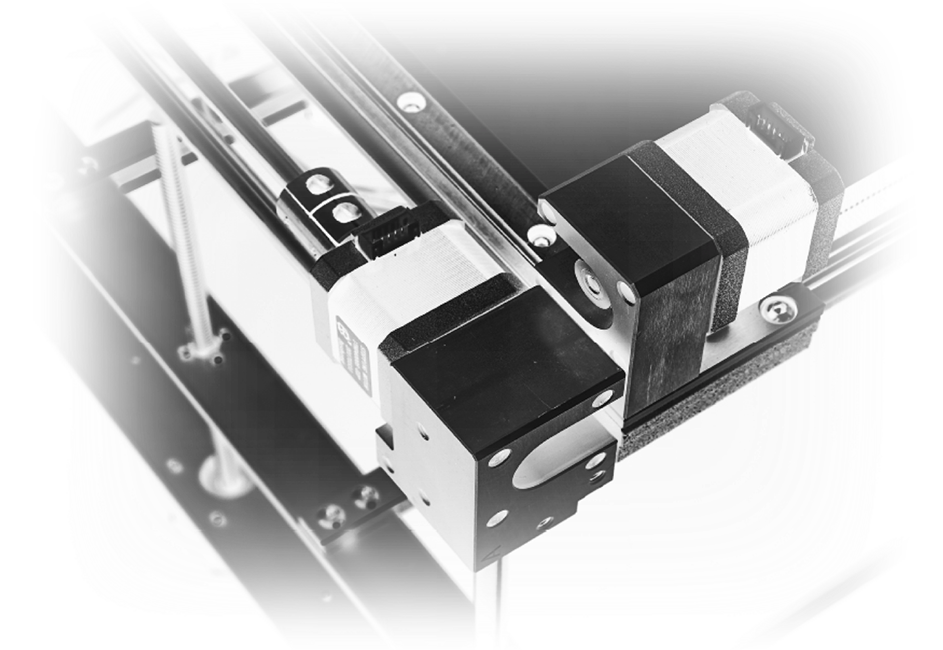

    Industrial Linear Guide Rail

    Turbo-M

    Intelligent Temperature Control System

    Turbo-M

    Built-In Camera System

    Turbo-M

    HEPA Filter System

    Turbo-M

    Foldable 5-Inch LCD

    Turbo-M

    Auto-Levelling Of Inductive Sensor Type

    Product high lights

    ● Maximum printing speed up to500mm/sec ● Effective HEPA filter system ● Built-in heating chamber ● Built-in filament chamber drying system
    Goofoo

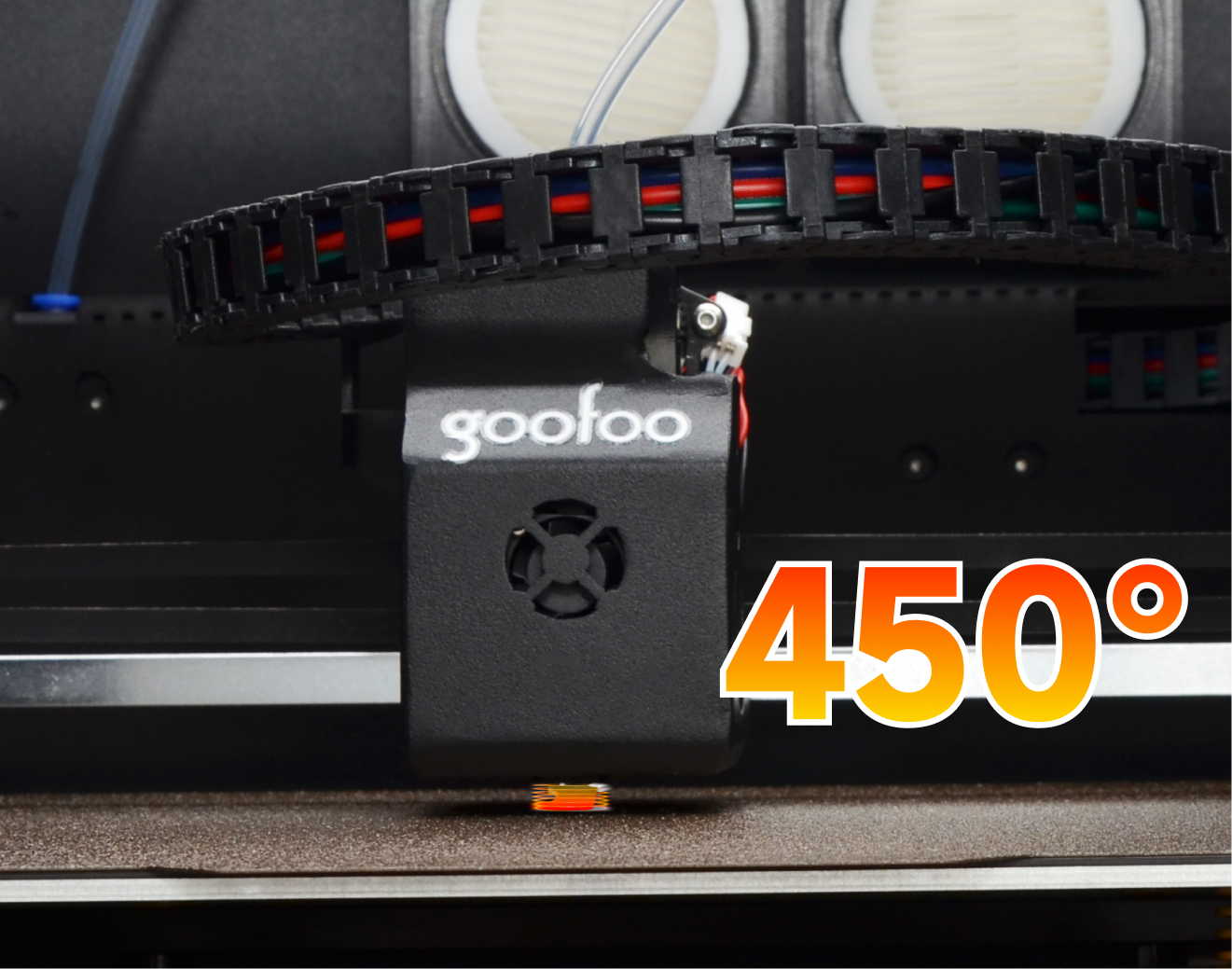

    Maximum temperature of the print head up to 450℃

    New heater that surrounds the entire hot end. It can quickly heat up to 200°C and melt the filament material instantly. Twin gear straight extruder providing strong extrusion force. Titanium heat shield and hardened steel nozzles on the hot end for maximum operating temperature up to 450°C.
    Goofoo

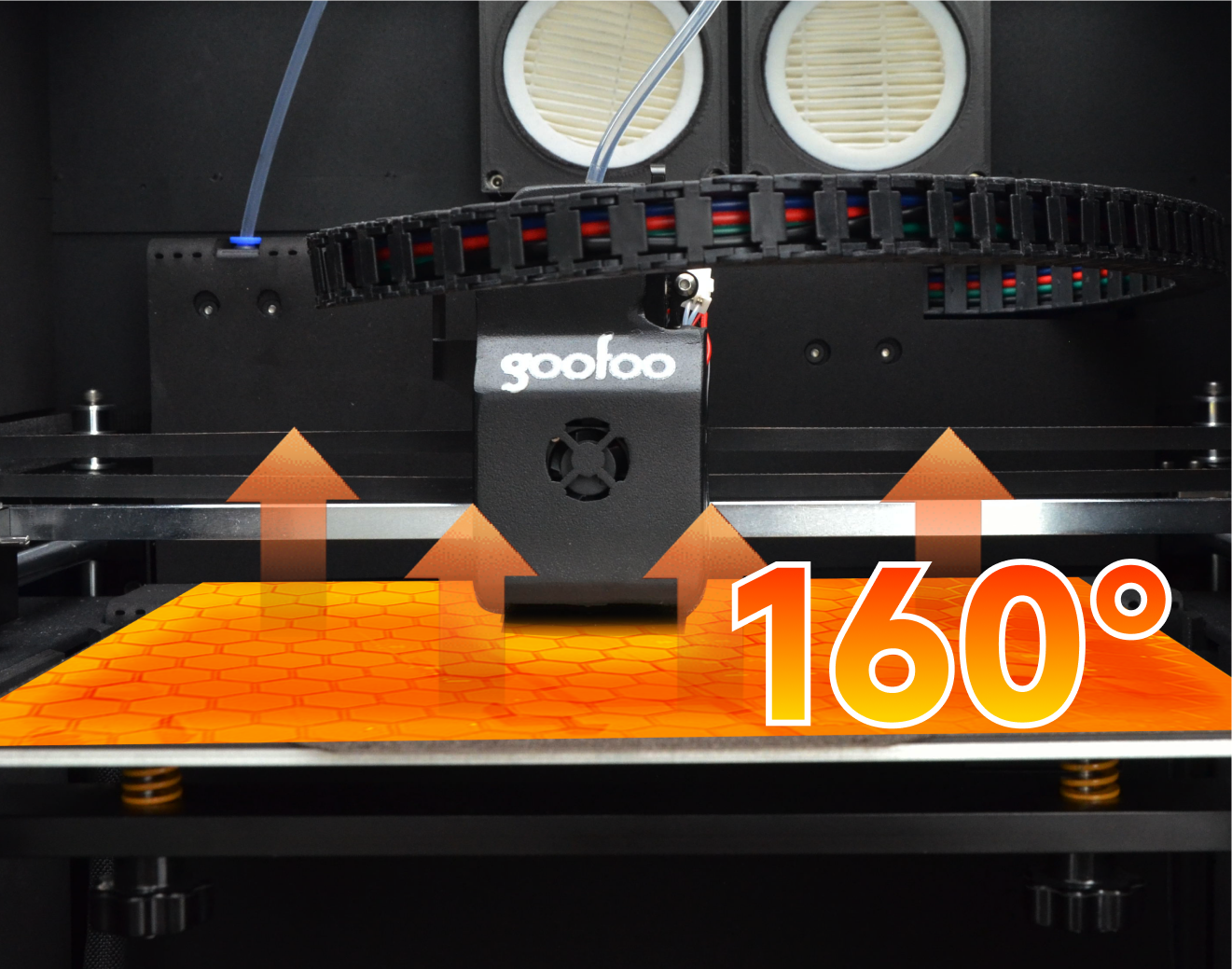

    Heated bed Max.160℃

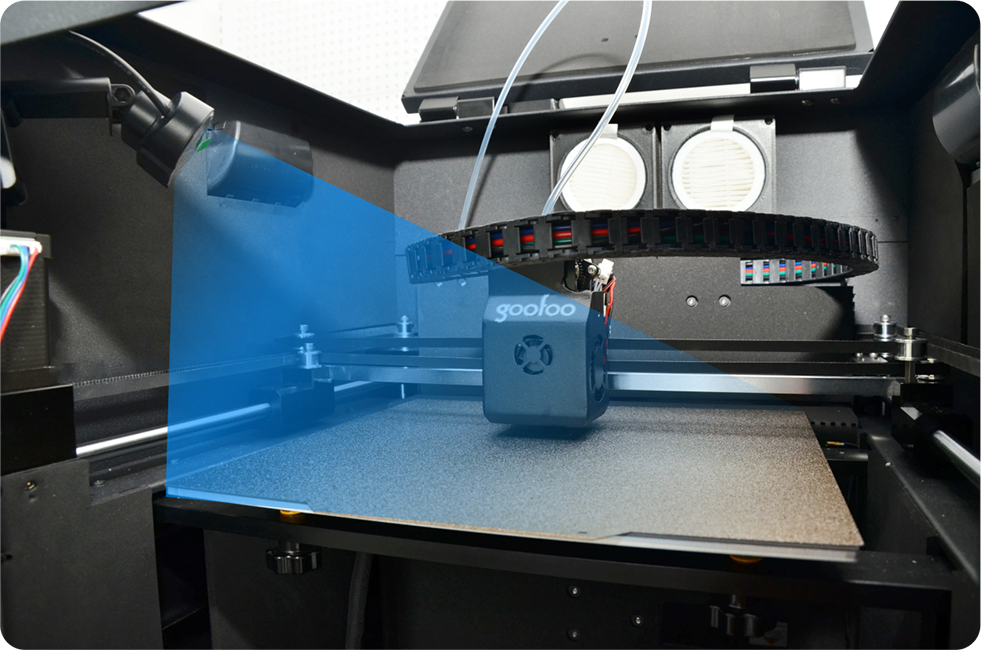

    High-temperature heat beds are set up for the printing of different industrial high-temperature materials, and at the same time, with the extruder's high-precision laser radar, you don't have to worry about the printing of the first layer of the problematic situation.
    Goofoo

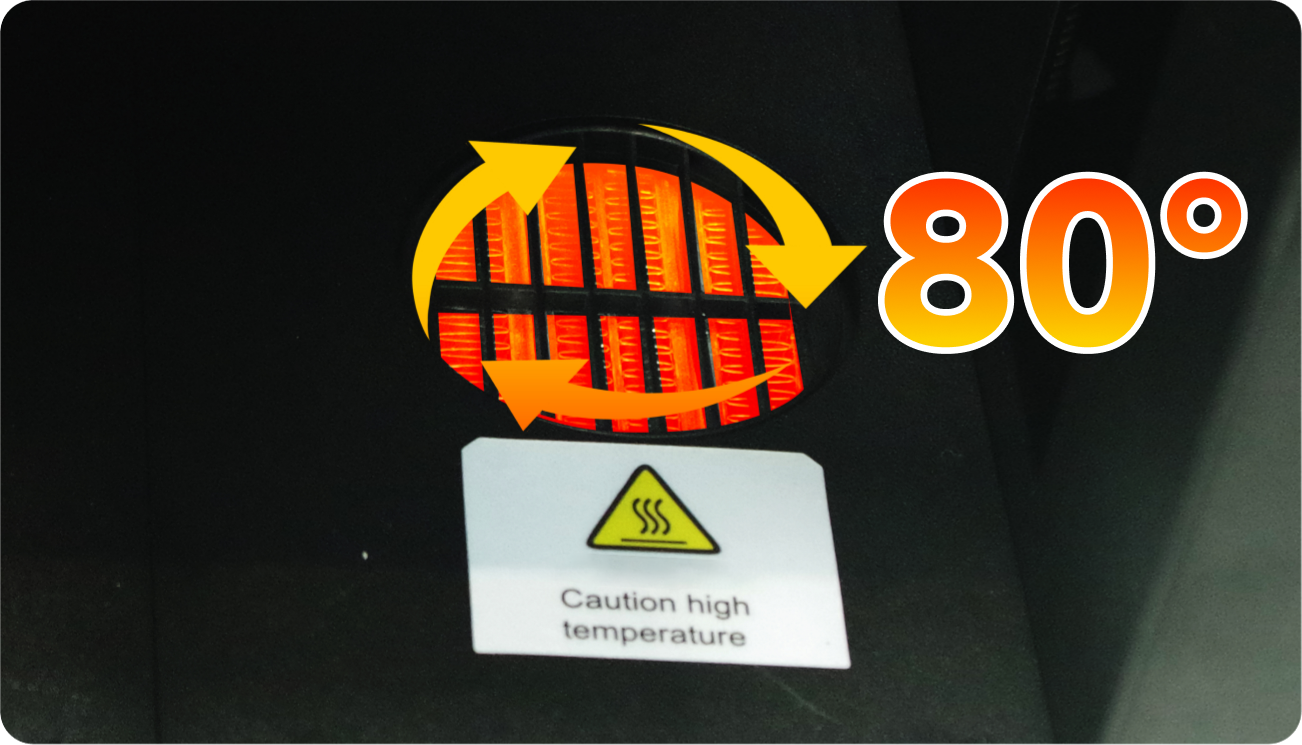

    Intelligent temperature control system

    The temperature can be up to 80℃ and keep the build chamber in stable condition to get good print results.
    Goofoo

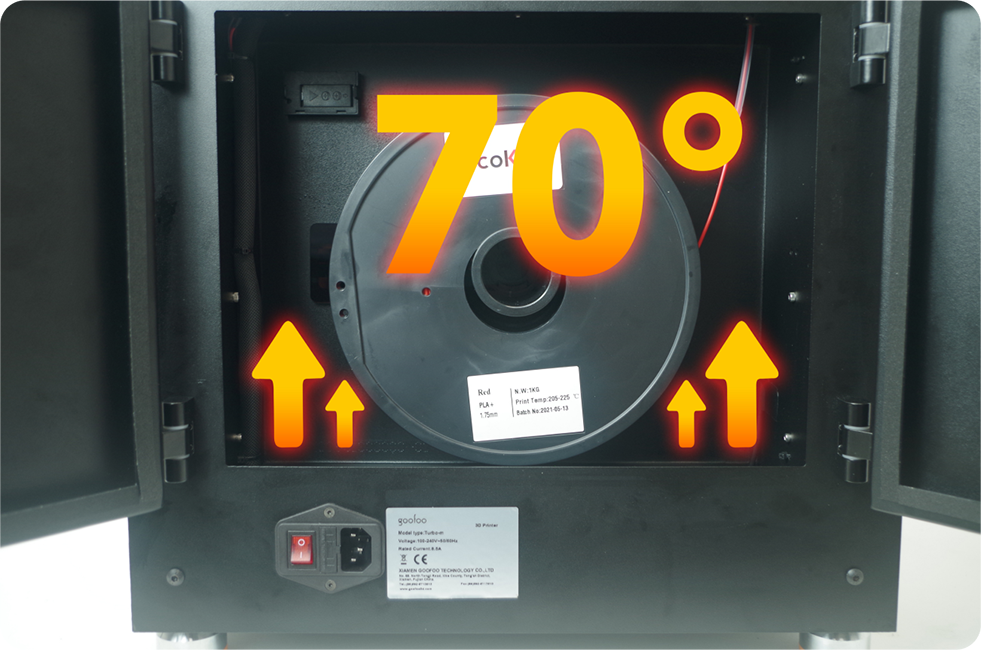

    Filament drying system

    The temperature can be up to 70°Cand keep the filament in good performance.
    Goofoo

    Solid body and high performance

    Metal structure to get stable quality and good durabilit
    Goofoo

    Easy setup and monitoring

    Start printing quickly with a simple first-time user experience. including auto-leveling and a high-resolution internal camera. Turbo-M uses an AI camera to watch over spaghetti failure, foreign objects, debris, etc. It also supports real-time monitoring and creates time-lapses for sharing.
    Goofoo

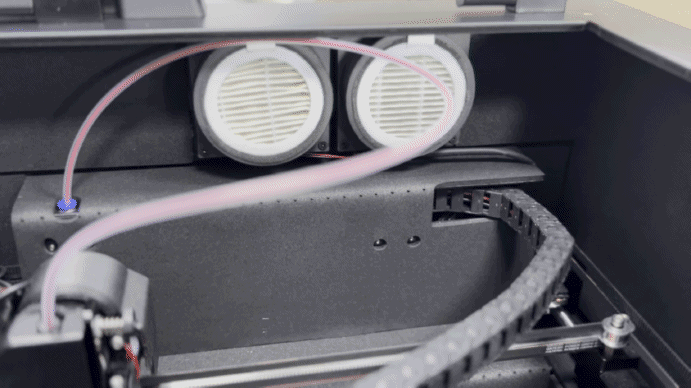

    Environmental control

    The integrated air manager filters out up to 95% of ufps while also keeping the build chamber temperature carefully regulated
    Goofoo

    Temperature and humidity measurement system

    Monitor and control the filament chamber condition as needs.
    Goofoo

    · High bandwidth flow control (E) · Active vibration compensation (XY)

    Goofoo

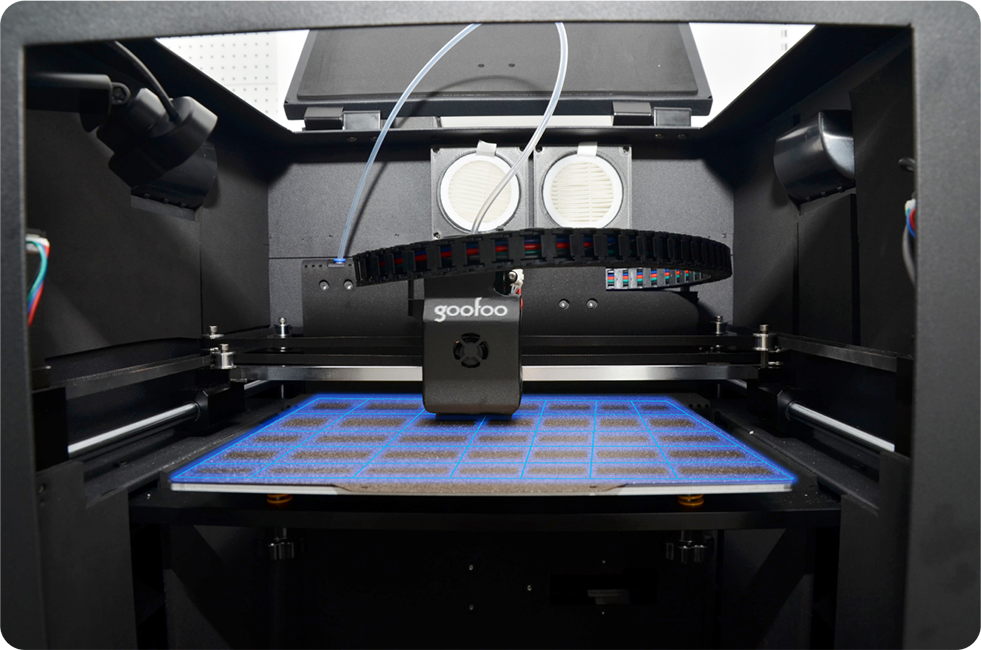

    Advanced active leveling

    Reliable first-layer adhesion enables unattended use without manual leveling.
    Goofoo

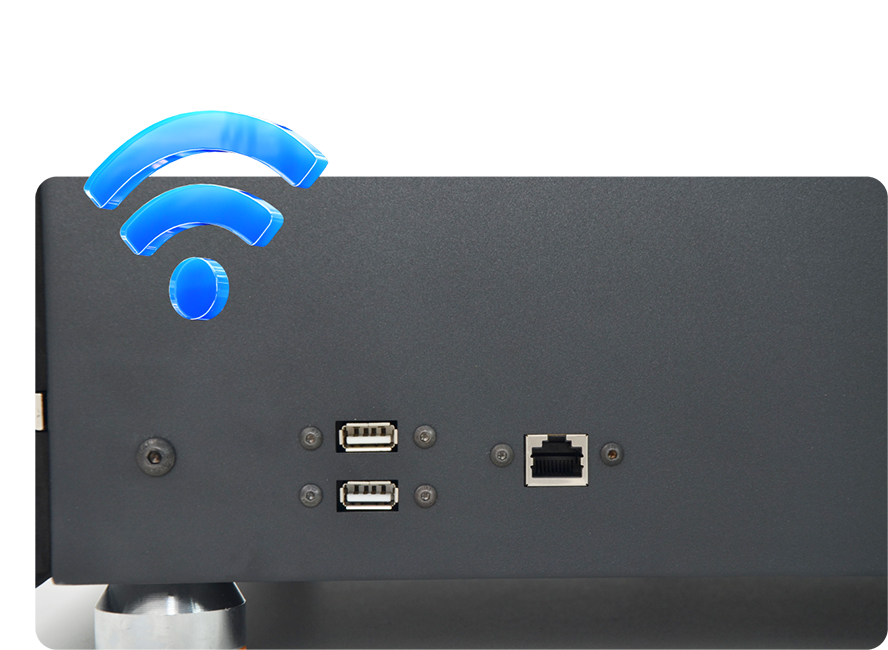

    Network connectivity

    Supports major transmission modes on the market: WIFI, Lan, Type c, or USB.
    Goofoo

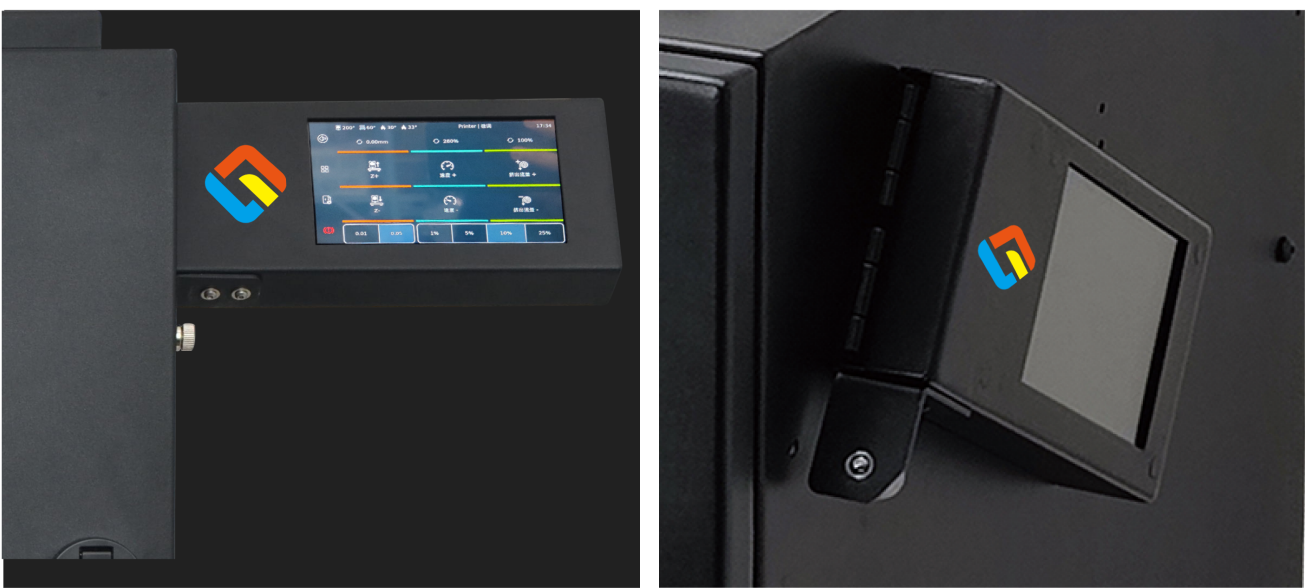

    Intelligent touch screen display operation

    Foldable 5-Inch TFT High-Definition Display Screen With Intelligent Touch Control, Perfect Experience
    Goofoo

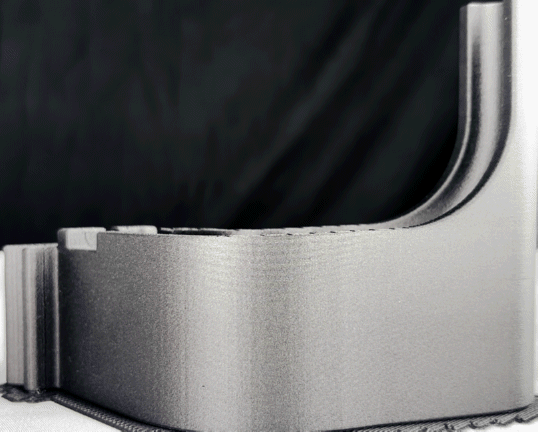

    Example of print model: PA-CF25%

    Goofoo

    Product parameters

    Print TechnologyFDM (FFF)
    Build Volume240*210*200 mm
    Print SpeedUp to 500mm/s
    Power Supply100 -240V.50 -60Hz，600W
    Layer Thickness0.05 -0.3mm
    Position AccuracyX,Y,Z/10,10,5microns
    Extruder TemperatureMax.300°C or 450°C
    Heated BedMax. 160°C
    ConnectivityUSB Memory stick, Type C, RJ45, Wi-Fi
    Supported Filament1.75mm PLA, ABS, ASA, PETG, Nylon, PC, PP,TPU, TPE, HIPS,PVA, PA-Carbon Fiber, PA-Glass Fiber, PEEK, Etc.
    Input file format*.3MF, *.STL, *.STP,*.STEP,*.SVG,*.AMF, *.OBJ



    Online Inquiry

    Submit an inquiry

    Related Products

    图片名称

    FD01 pro

    图片名称

    Cardan Five axis 3D printer with 360 degree rotation printing and laser printing

    图片名称

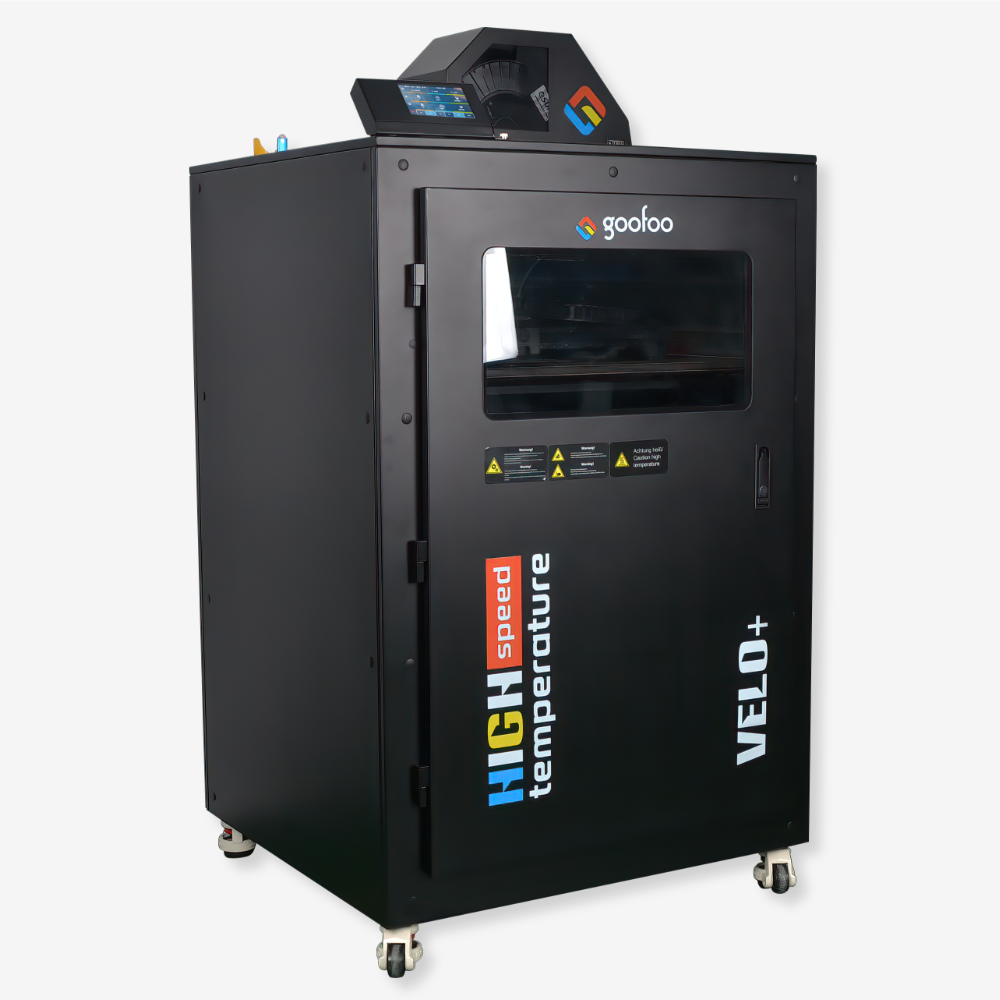

    Velo+ 3d printer print size Single extruder 600*500*600mm/Dual extruder 500*500*600mm
