Product description

Density(g/cm3) 1.2
Heat Distortion Temp(℃,0.45MPa) 53
Melt Flow Index(g/10min) 8.1(190℃/2.16kg)
Tensile Strength(MPa) 32.2
Elongation at Break(%) 68.9
Flexural Strength(MPa) 41.31
Flexural Modulus(MPa) 1701
IZOD Impact Strength(kJ/㎡) 8.58
Durability 4/10
Printability 9/10
Recommended printing parameters
Extruder Temperature(℃) 190 – 270℃
Bed temperature(℃)  45 – 60°C
Fan Speed  100%
Printing Speed  40 – 100mm/s
Heated Bed  Optional
Recommended Build Surfaces Masking paper, PVP solid glue, PEI
Contact now

Product Details

Light weight pla filament is a material specially developed for aeromodelling. The interlayer bonding is stable, and the foaming rate and strength can be controlled by adjusting the printing temperature. ePLA-LW use active foaming technology to achieve lightweight, low-density PLA parts, the foaming volume ratio is 220%, and the density is as low as 0.54g/cm³

 Product Features:

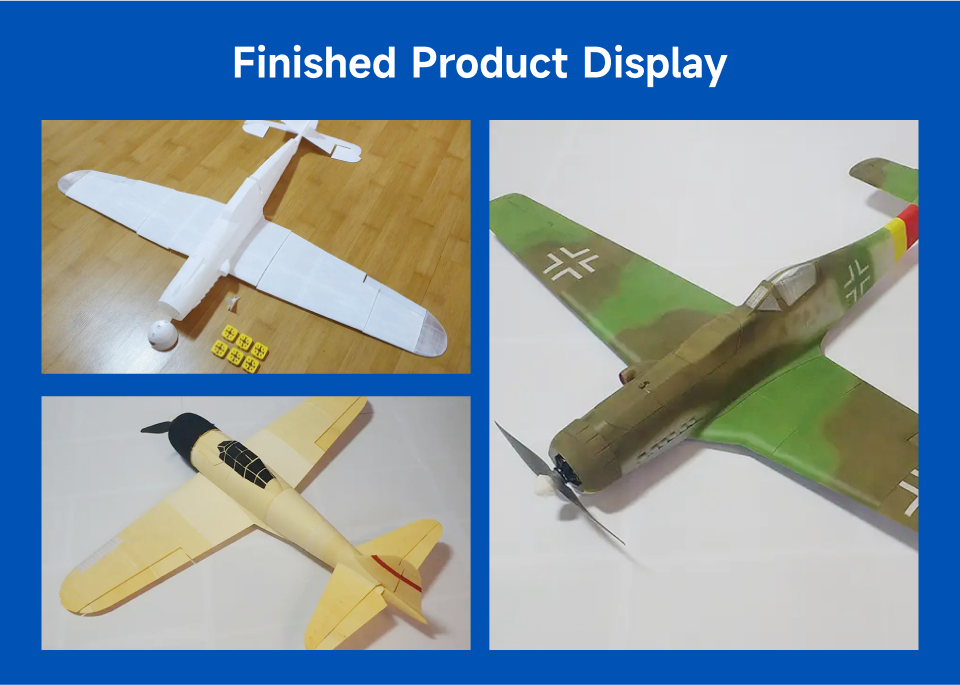

【Application】Active foaming technology is used to realize light weight and low density PLA parts, specially designed for the fields of model aircraft, drones and COSPLAY.

【Lighter weight】Under the same model and at the same speed, ePLA-LW enables the model aircraft to have a lighter wing load and a lower stall speed.

【More saving】Printing the same volume model, 1 roll of ePLA-LW can be used as 2 rolls of normal PLA, which saves 55% of the filaments compared with normal PLA.

【Excellent printing effect】Basically invisible layer pattern ,excellent matte and delicate effect after printing.It’s easy to paint and the surface pigment has strong adhesion.

【Vacuumed Sealed Packaging】Net Weight: 1KG. eSUN filament comes in a sealed vacuum bag with a desiccant bag to keep it dry and keep out dust and foreign particles, prevent nozzle jams and yield smooth 3D  models.
